Art. no.
180100020

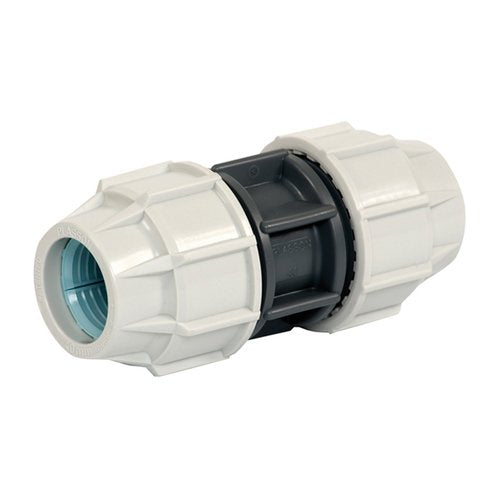

PL Coupling 20mm for PE pipe, water 16 bar, 18010
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
11,49 €
Unavailable
In stock
42 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
PL Coupling 20mm for PE pipe, water 16 bar, 18010
11,49 €
Product range:
Valves
Compression fittings for pipes made of PE 80, PE 100, PE 100 RC according to DIN 8074/75, DIN EN 12201-2 and PE-Xa according to DVGW GW 335-A3 (water)
Tapping valves made of PP
Seals and accessories
Materials:
Series 18 compression fittings
Body made of grey polypropylene
(made of black PP for dimension d = 16)
Union nuts made of light grey polypropylene
Seals made of EPDM / NBR
Seal type up to 32 mm – O-ring
Seal type 40 – 63 mm – wedge seal
(18610 and 1804P O-ring)
Seal type 75 – 110 mm – double seal
Seal type 125 mm – O-ring
Clamping rings made of polyacetal
Reinforcing rings made of stainless steel
PlassCom compression fittings
Body made of transparent or black polypropylene
Union nuts made of orange polypropylene
Seals made of NBR
Seal type – O-ring
Pressure tapping valves type 7680 (Article No.: 18680)
Body made of black polypropylene
Seals made of EPDM / NBR
Screws made of stainless steel
Specification:
Series 18 compression fittings
DIN 8076
ISO 17885 (W)
DVGW GW 335 B3
Pressure tapping valves type 7680 (Article No.: 18680)
DVGW W 336
Specification:
Thread:
Tapered external thread / cylindrical internal thread according to DIN EN 10226-1
Sealing for plastic threads must be done with PTFE (Teflon)
tape.
Quality assurance:
According to ISO 9001
Test certificates/approvals:
Series 18 compression fittings
DVGW DW-8616AT2449 + DW-8616AT2450 (drinking water supply)
For all PP fittings with article numbers 18.....
Exceptions: 18330, 18930, 18017, 18057, 188967, 180100125
DVGW W 270
KTW-BWGL according to UBA transition recommendation
Elastomer guideline of the UBA
Metals in contact with water comply with the UBA assessment basis
Pressure tapping valves type 7680 (Article No.: 18680)
DVGW DW-6606BO0195 (drinking water supply)
DVGW W 270
KTW-BWGL according to UBA transition recommendation
Elastomer guideline of the UBA
Metals in contact with water comply with the UBA assessment basis
External monitoring:
Süddeutsches Kunststoff-Zentrum, Würzburg (D)
Valves
Compression fittings for pipes made of PE 80, PE 100, PE 100 RC according to DIN 8074/75, DIN EN 12201-2 and PE-Xa according to DVGW GW 335-A3 (water)
Tapping valves made of PP
Seals and accessories
Materials:
Series 18 compression fittings
Body made of grey polypropylene
(made of black PP for dimension d = 16)
Union nuts made of light grey polypropylene
Seals made of EPDM / NBR
Seal type up to 32 mm – O-ring
Seal type 40 – 63 mm – wedge seal
(18610 and 1804P O-ring)
Seal type 75 – 110 mm – double seal
Seal type 125 mm – O-ring
Clamping rings made of polyacetal
Reinforcing rings made of stainless steel
PlassCom compression fittings
Body made of transparent or black polypropylene
Union nuts made of orange polypropylene
Seals made of NBR
Seal type – O-ring
Pressure tapping valves type 7680 (Article No.: 18680)
Body made of black polypropylene
Seals made of EPDM / NBR
Screws made of stainless steel
Specification:
Series 18 compression fittings
DIN 8076
ISO 17885 (W)
DVGW GW 335 B3
Pressure tapping valves type 7680 (Article No.: 18680)
DVGW W 336
Specification:
Thread:
Tapered external thread / cylindrical internal thread according to DIN EN 10226-1
Sealing for plastic threads must be done with PTFE (Teflon)
tape.
Quality assurance:
According to ISO 9001
Test certificates/approvals:
Series 18 compression fittings
DVGW DW-8616AT2449 + DW-8616AT2450 (drinking water supply)
For all PP fittings with article numbers 18.....
Exceptions: 18330, 18930, 18017, 18057, 188967, 180100125
DVGW W 270
KTW-BWGL according to UBA transition recommendation
Elastomer guideline of the UBA
Metals in contact with water comply with the UBA assessment basis
Pressure tapping valves type 7680 (Article No.: 18680)
DVGW DW-6606BO0195 (drinking water supply)
DVGW W 270
KTW-BWGL according to UBA transition recommendation
Elastomer guideline of the UBA
Metals in contact with water comply with the UBA assessment basis
External monitoring:
Süddeutsches Kunststoff-Zentrum, Würzburg (D)
