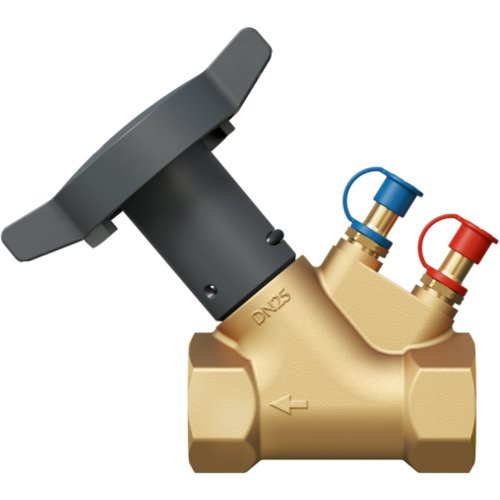

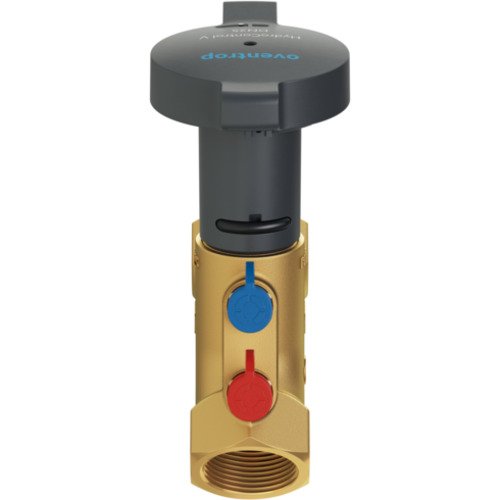

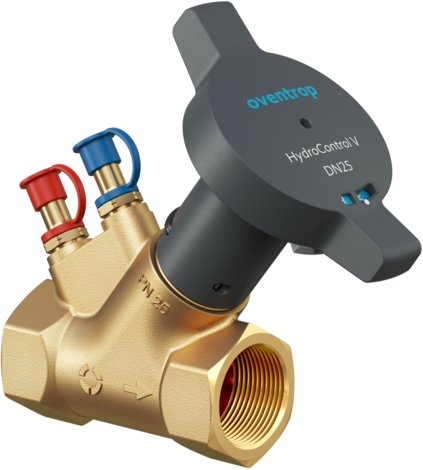

OVENTROP Branch control valve HydroControl V PN25 DN32, Rp1 1/4 IG, HydroPort, EZB

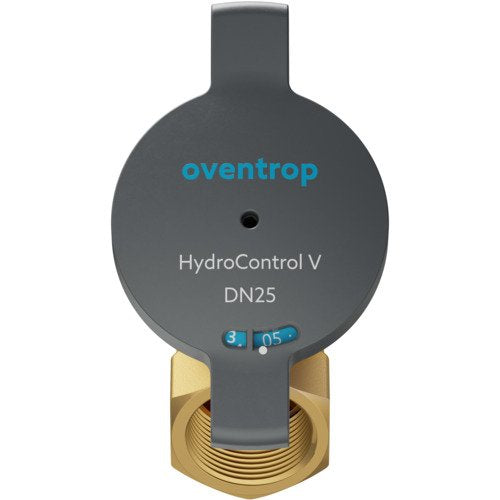

Line balancing valve for the hydraulic balancing of distribution pipes in central heating and cooling systems with closed circuits. Flow determination by differential pressure measurement, taking into account the presetting values, e.g. with the OV-DMC3 measuring system. Installation in the flow or return. In oblique seat design with continuously adjustable fine presetting via a non-rising handwheel, which can be checked at any time. Presetting reproducible, lockable and sealable as standard. All functional elements on the handwheel side. Equipped as standard with two measuring, draining and filling valves. Valve housing and media-contacting parts made of dezincification-resistant brass, EPDM or PTFE. Maintenance-free, double spindle sealing. Female thread on both sides according to EN 10226. Nominal diameter: DN32 Connection size: Internal thread Rp 1 1/4
