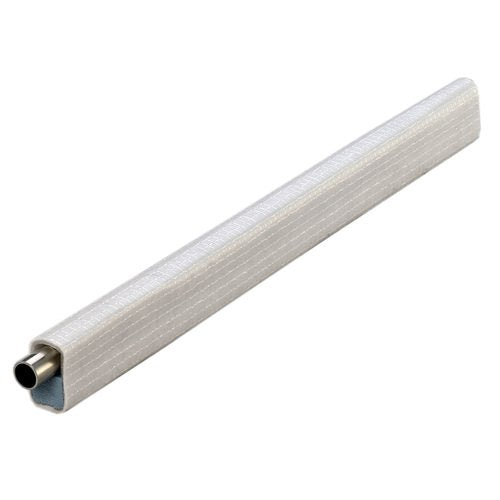

MISSEL KDH 20-18, D: 20 mm compact insulation sleeve, Ct: 90 m, per meter

Missel Compact Insulation Sleeve® KDH 100% Insulation

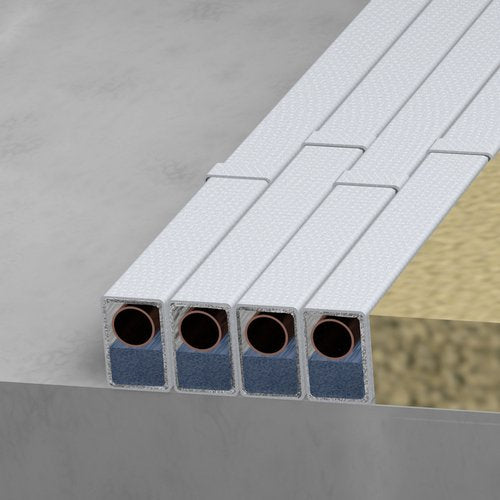

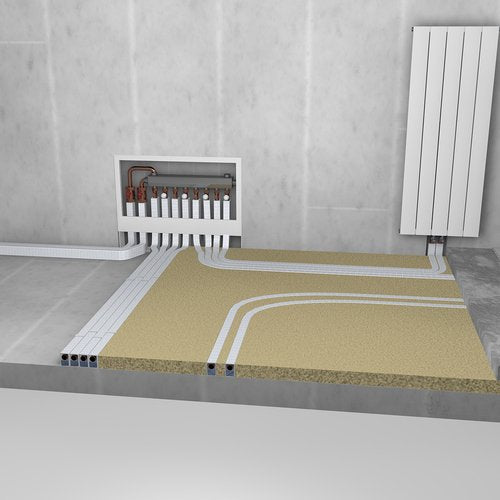

Insulation for heating and plumbing pipes in floor structures against earth-contacting, outdoor-air-contacting, and unheated components, as well as between heated rooms of one and different users; insulation according to GEG (EnEV);
Closed-cell polyethylene foam, fiber padding made of firmly needled fibers, additionally reinforced by a tear-resistant mesh fabric film. Mesh fabric knotted at the intersections. No change in the quality of impact sound protection of floor structures when using the Missel Compact Insulation Sleeve® including the KDH-FX fastening. Suitable for all pipe materials.
When offering equivalent, alternative products, the following essential product features must be observed and documented in writing to the client with manufacturer's proofs:
Lambda value 0.035 W/(m*K) at 40 °C to reduce structural heights through thinner insulation layers,
Robust, tear-resistant surface to prevent damage during the construction phase, which serves to avoid structure-borne sound bridges
Proof that the insulation, including the fastening system, does not require an additional impact sound layer
CE marking according to EN 14313 for the entire European market
Building material class according to DIN 4102-1: B2
Building material class according to DIN EN 13501-1: EL
Thermal conductivity according to DIN EN 12667: l40°C = 0.035 W/(m×K)
Temperature resistance according to
DIN EN 14706 (permanent): from -40°C to +90°C
Delivery length: 2m
Insulation layer thickness: 20 mm
