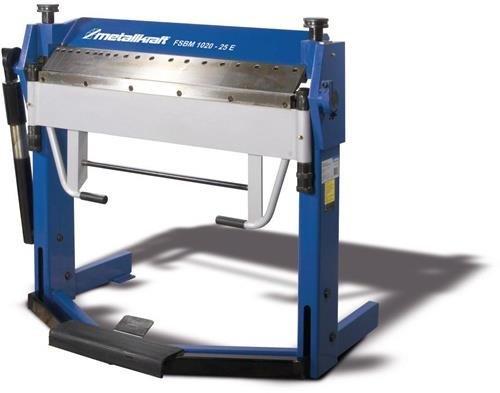

Manual Folding Machine FSBM 1020-25 E Sheet Metal 1.5 - 3mm METALLKRAFT

With workpiece clamping via foot pedal Workpiece clamping is done by foot pedal, leaving both hands free for material feeding. Various tool options available: E, S2, HS2, and HSG. The powerful assist cylinder facilitates bending. Wide clearance between upper and lower beam of up to 25 mm. Self-lubricating plain bearings. Clamping pressure of the upper beam easily adjustable via knurled screws. Material thickness adjustment via knurled screw. Adjustable stop for bending angle. Equipment details: FSBM 1270-20 E With segmented sharp bending tools, continuous bending bar, and continuous bed support. FSBM 1020-20 S2 With segmented sharp bending tools, segmented bending bar, and continuous bed support. FSBM 1020-20 HSG With segmented goose-neck tools, segmented bending bar, and segmented bed support. Segments have a hardness of HRC24-26. Further technical specifications: · Height: 1130mm · Width: 800mm · Bending capacity 235 N/mm²: 2.5mm · Bending capacity 700 N/mm²: 1.5mm · Bending capacity Aluminum: 3mm · Explanation of bending capacity 700 N/mm²: Hardened upper tools are required for bending stainless steel · Segment division: 25-30-35-40-45-50-75-100-150-200-270mm
