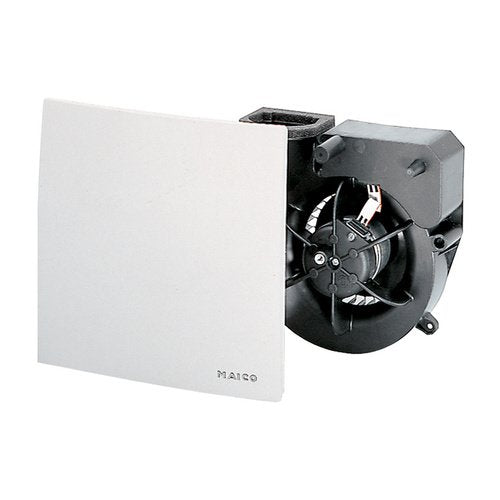

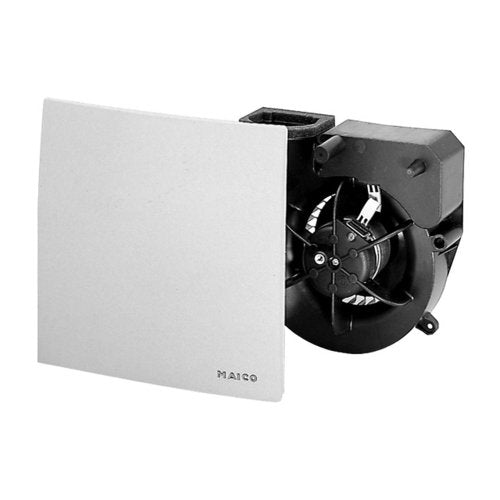

MAICO Fan Insert ER 60 GVZ Base Load, Delay Timer 62 m3/h

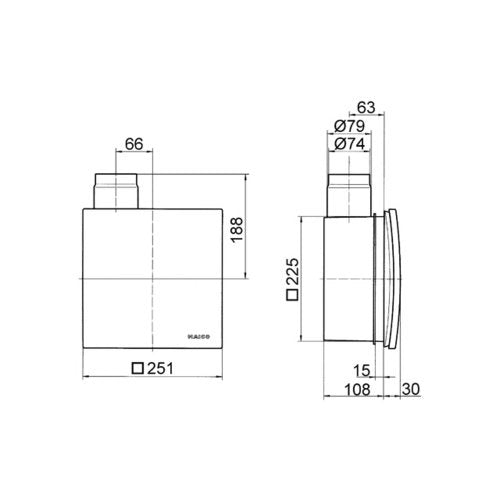

Article: ER 60 GVZ. Version: Base load and delay time circuit. Flow rate: 35 m3/h / 62 m3/h. Speed: 850 rpm / 1250 rpm. Air direction: Exhaust. Speed controllable: no. SEC average: -3.43 kWh/(m2*a). Voltage type: AC. Rated voltage: 230 V. Mains frequency: 50 Hz. Power consumption: 10 W / 21 W. IMax: 0.12 A / 0.16 A. Protection class: IP X5. Mains cable: 5 / 1.5 mm2. Installation location: Wall / Ceiling. Installation type: Flush-mounted. System type: decentralized. Material: Plastic. Color: traffic white, similar to RAL 9016. Weight: 1.52 kg. Weight with packaging: 1.8 kg. Filter class: ISO Coarse 30 % (G2). Discharge direction: sideways. Width: 250 mm. Height: 250 mm. Depth: 150 mm. Width with packaging: 280 mm. Height with packaging: 280 mm. Depth with packaging: 155 mm. Conveying medium temperature at IMax: 40 °C. Run-on time: 6 min. Switch-on delay: 50 s. Sound pressure level: 25 dB(A) / 36 dB(A) / Specification according to DIN 18017-3 for an equivalent absorption area AL = 10 m2. Packaging unit: 1 piece. Nominal width: 75 mm / 80 mm.
