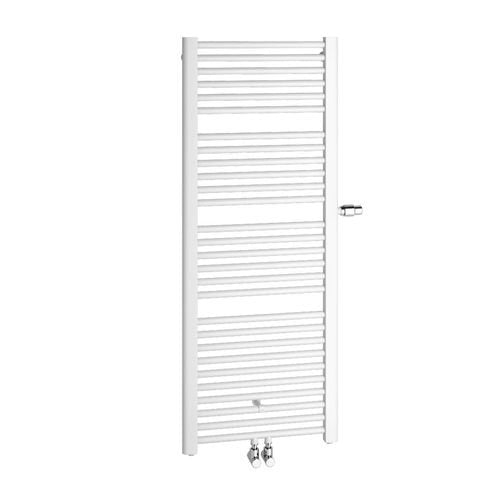

Kermi Basic plus, H 1448x599x35 mm QN 817 W, RAL 9016, left valve

Kermi Basic plus
Bathroom and living room radiators
with
integrated valve set and a
adjustable valve insert matched to the
heat output. The
kv value is factory preset
and matched to the heat output.
Thermostatic head optionally on the left or
right at user-friendly height.

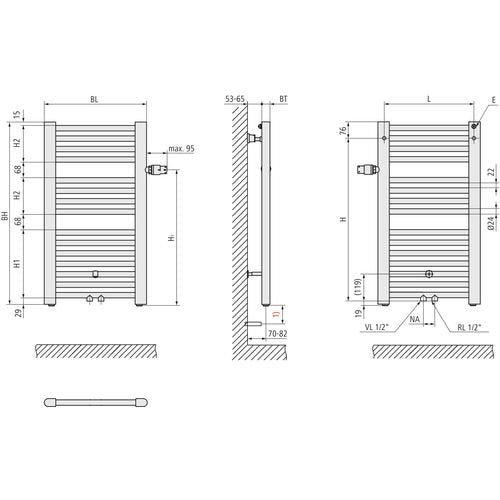

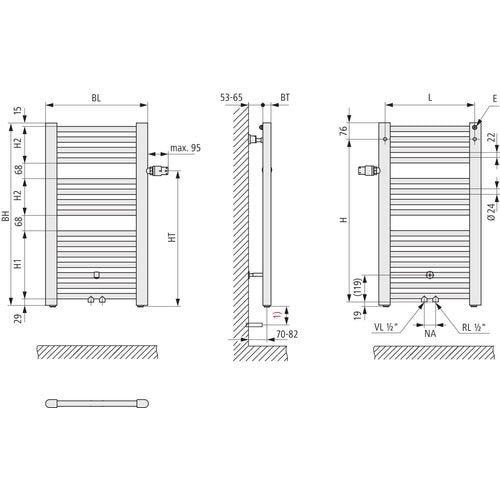

With horizontal round tubes, diameter
24 mm and vertical manifold tubes 50 x
35 mm as D-profile. Without visible
welds. Gaps between the tube blocks
for hanging towels.
The mounting is done on the
back of the D-profiles. The
supplied mounting set corresponds to
VDI 6036, Requirement Class 2.
Requirement Class 3 available on request.
The wall material must be
checked for sufficient load-bearing capacity.
Alignment possible horizontally, vertically and at a
distance from the wall.
Visible parts of the accessories in
radiator color.
Ready for installation, packed in a cardboard box and
shrink-wrapped.
Tested according to DIN EN 442. The
design corresponds to the former
BAGUV guidelines. Awarded with
the RAL quality mark.
Standard color white (RAL 9016), radiator color concept possible at extra charge.
Connections: 2 x G 1/2' female thread
in the center at the bottom. Flow on the left for
left version, flow on the right for
right version
Ventilation: G 1/4' female thread to
the rear
Center distance: 50 mm central connection
Paint finish: Two-layer paint finish according to
DIN 55900, primer (ETL),
powder coating (EPS), emission-free
even during heating operation.
Operating pressure: max. 10 bar
Medium: hot water up to 110 degrees C
Scope of delivery: Mounting set, valve
and thermostatic head
