Kermi Basic-D BH1448x35x450mm QN631, white, connection right, NAB900

Kermi Basic-D

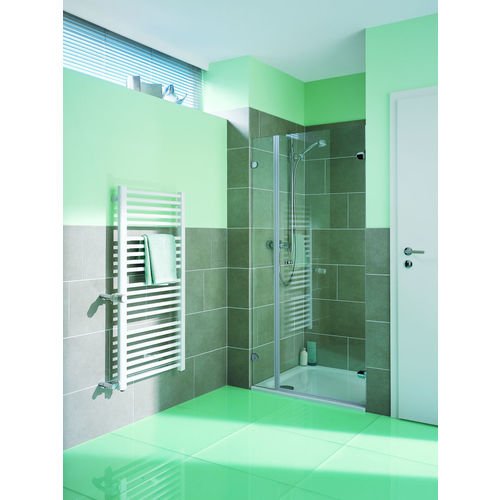

Bathroom and living area radiator

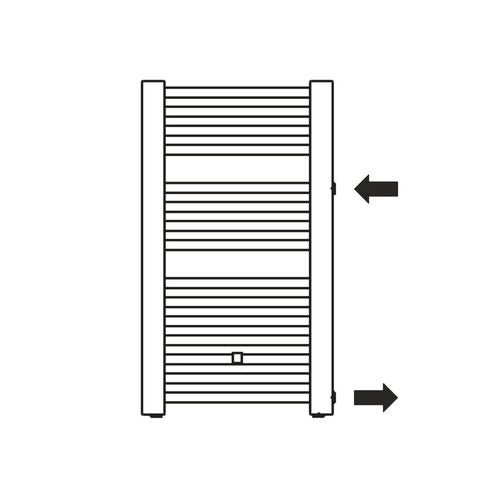

with side
connections on the left or right for
replacing DIN radiators and Kermi
flat radiators.
With horizontal round tubes, 24 mm diameter,
and vertical collector tubes, 50 x
35 mm, with a D-profile. Without visible
welds. Gaps between the tube blocks
for hanging towels.
The mounting is on the
back of the D-profiles. The
included mounting set complies
with VDI 6036, requirement class 2.
Requirement class 3 possible upon request.
The wall material must be
checked for sufficient load-bearing capacity.
Alignment horizontal, vertical, and at
a distance from the wall is possible. Visible parts of the
accessories in radiator color.
Ready for installation, packed in cardboard and
shrink-wrapped in film.
Tested according to DIN EN 442. The
construction complies with the former
BAGUV guidelines. Awarded the
RAL quality mark.
Standard color white (RAL 9016), radiator color concept possible
at an extra charge.
Chrome-plated version not suitable for rooms
with aggressive/humid atmospheres.
Bathrooms, kitchens, etc.,
as well as areas outside the
spray range of showers, toilets,
... are not to be understood as rooms with
aggressive/humid atmospheres.
Connections:
2 x G 1/2' internal thread on the side of the
left or right collector tube,
2 x G 1/2' internal thread downwards
Ventilation: G 1/4' internal thread to the
rear
Coating: Two-layer coating according to
DIN 55900,
Primer (ETL), powder coating
(EPS), emission-free even during
heating operation.
Operating pressure: max. 10 bar
Medium: Hot water up to 110 degrees C
Scope of delivery: Mounting set
