Kermi Basic-D BH1172x35x450mm QN511, white, conn. left, NAB900

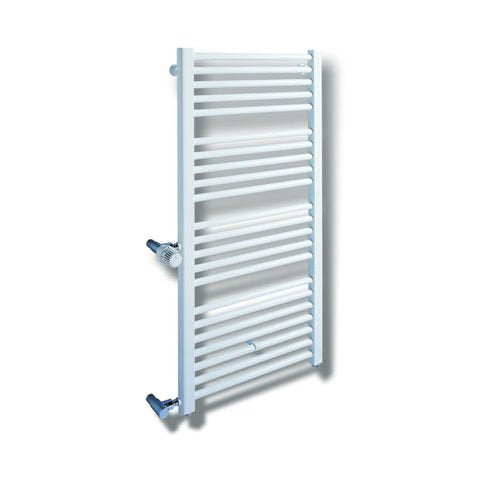

Kermi Basic-D
Bathroom and living area radiator
with side
connections on the left or right for
replacing DIN radiators and Kermi
flat panel radiators.

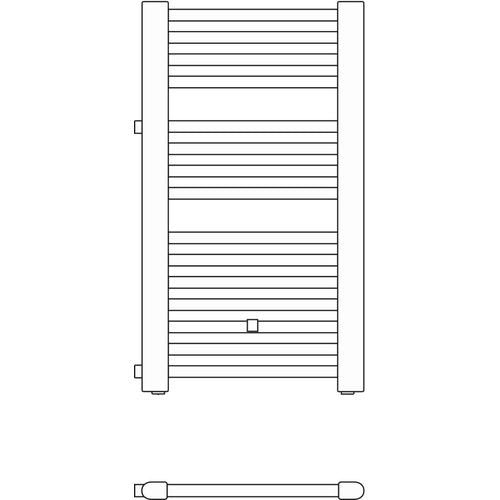

With horizontal round tubes, 24 mm diameter
and vertical collector tubes, 50 x
35 mm, in a D-profile. Without visible
welds. Spaces between the tube blocks
for hanging towels.
The mounting is done on the
back of the D-profiles. The
enclosed mounting set complies with
VDI 6036, requirement class 2.
Requirement class 3 available upon request.
The wall material must be checked on site
for sufficient load-bearing capacity.
Horizontal, vertical and wall-distance
alignment possible. Visible parts of the
accessories in radiator color.
Ready for installation, packed in cardboard and
shrink-wrapped in film.
Tested according to DIN EN 442. The
design complies with the former
BAGUV guidelines. Awarded with
the RAL quality mark.

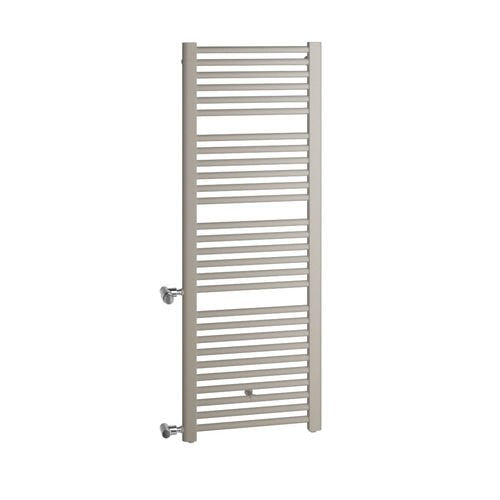

Standard color white (RAL 9016), radiator
color concept available at extra cost.
Chrome-plated version not suitable for rooms
with aggressive/humid atmosphere.
Bathrooms, kitchens, etc.,
as well as places outside the
spray area of showers, toilets,
... are not to be understood as rooms with
aggressive/humid atmosphere.

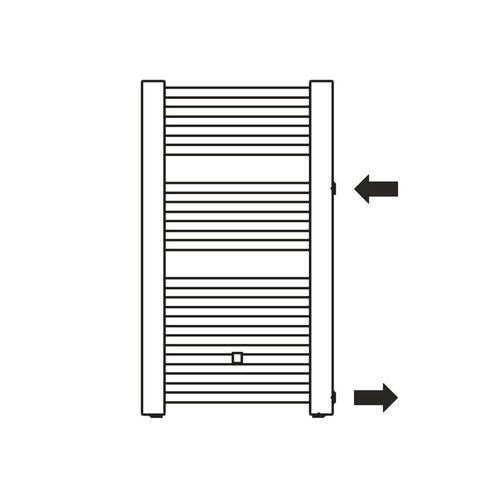

Connections:
2 x G 1/2' internal thread on the side of the
left or right collector tube,
2 x G 1/2' internal thread downwards
Ventilation: G 1/4' internal thread to the
rear
Painting: Two-coat paint system according to
DIN 55900,
Primer (ETL), powder coating
(EPS), emission-free even during
heating operation.
Operating pressure: max. 10 bar
Medium: Hot water up to 110 degrees C
Scope of delivery: Mounting set
