Kermi Basic-50 BH1172x35x749mm QN810, white

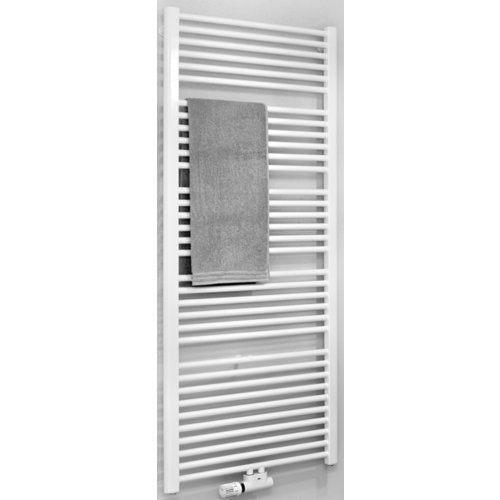

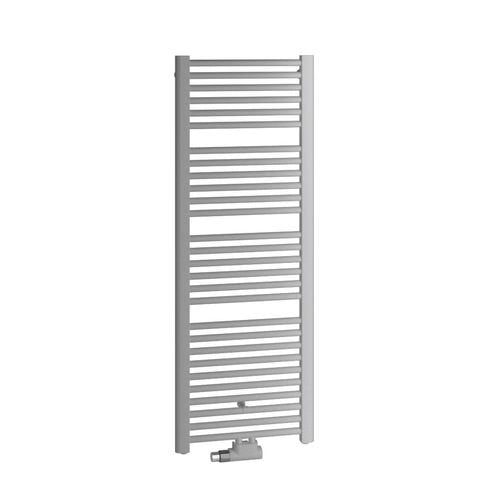

Kermi Basic-50
Bathroom and living room radiator
with horizontal
round tubes, 24 mm diameter, and
vertical manifold tubes, 50 x 35 mm, as
D-profile. Without visible weld seams.
Gaps between the tube blocks for
towel hanging.
The fastening is carried out on the
back of the D-profiles. The
fastening set included complies with
VDI 6036, requirement class 2.
Requirement class 3 available upon request.
The wall material on site must be
checked for sufficient load-bearing capacity.
Orientation horizontally, vertically and at a
distance from the wall possible.
Visible parts of the accessories in
radiator color.
Ready for installation, packed in cardboard and
shrink-wrapped in film.
Tested according to DIN EN 442. The
construction complies with the former
BAGUV guidelines. Awarded with
the RAL quality mark.
Standard color white (RAL 9016), radiator
color concept available at an extra charge.
Chrome-plated version not suitable for rooms
with aggressive/humid atmospheres.
Bathrooms, kitchens, etc.,
as well as areas outside the
spray zone of showers,
toilets... are not to be understood as rooms
with aggressive/humid atmospheres.

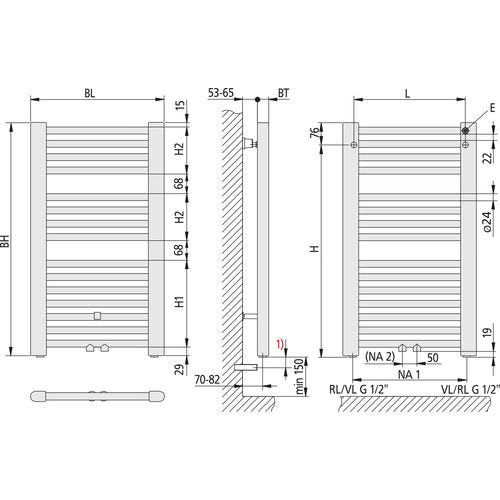

Connections:
2 x G 1/2' internal thread downwards,
2 x G 1/2' internal thread in the middle
downwards
Ventilation: G 1/4' internal thread to the
rear
Center distance: 50 mm central connection
or dependent on construction length
Painting: Two-coat painting according to
DIN 55900,
primer (ETL), powder coating
(EPS), emission-free even during
heating operation.
Operating pressure: max. 10 bar
Medium: hot water up to 110 degrees C
Scope of delivery: fastening set
