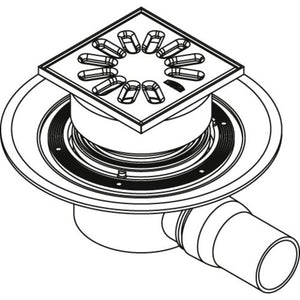

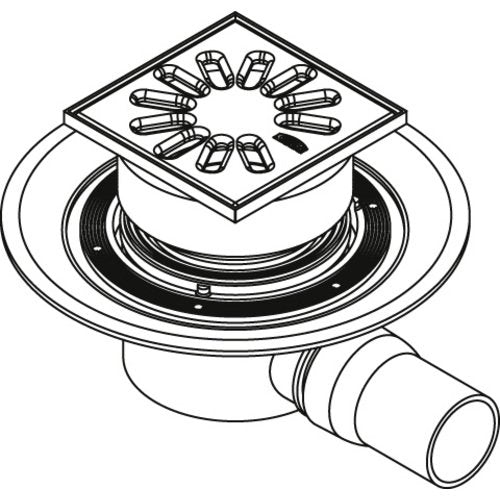

Kermi Drain Point A5X 050 Horizontal Drain DN50

KERMI Point Drain horizontal DN 50

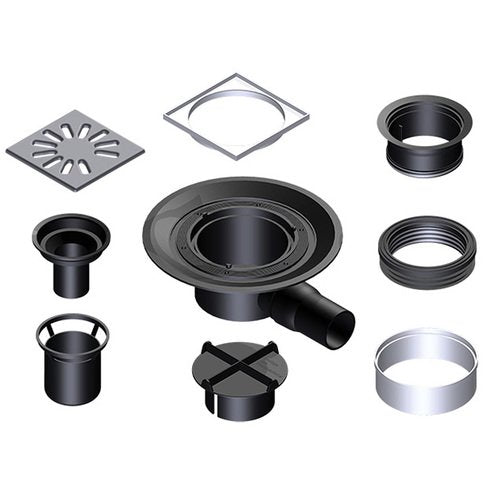

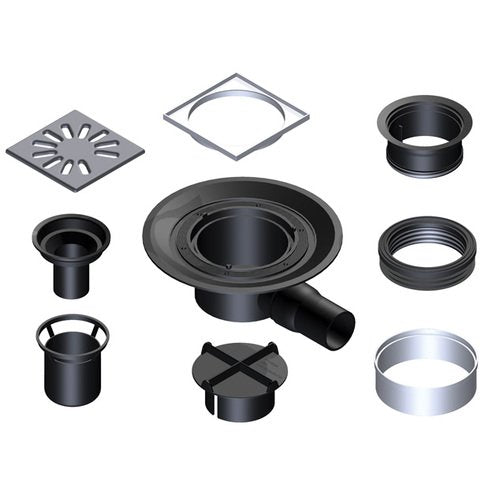

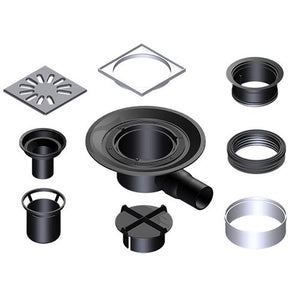

Drain housing and all accessories
for installation in Point Board and Point
Board with substructure.
Standard with Basic drain frame made of
plastic for tile build-up height
7-15 mm, extension element for build-up height
tile from 15 mm and
Basic drain cover made of stainless steel.
Optional with Exclusive drain frame and
Exclusive drain cover 1/2
(tile build-up height min. 10 mm).
Optional with screw-on drain frame and
Basic drain cover
(tile build-up height min. 10 mm).
Easy cleaning of the drain by
removing the drain cover and
odor trap.
Installation height Point Drain horizontal DN
50 min. 130 mm (drainage capacity 48 l /
min.).
Installation height Point Drain horizontal DN
50 with substructure min. 130 mm
(drainage capacity 48 l / min.).
Made in Germany.
Quality assurance system certified
according to DIN EN ISO 9001:2015.
Environmental management certified according to DIN
EN 14001:2015.
Energy management certified according to DIN
EN 50001:2011.
20 years spare parts repurchase guarantee
after model discontinuation
