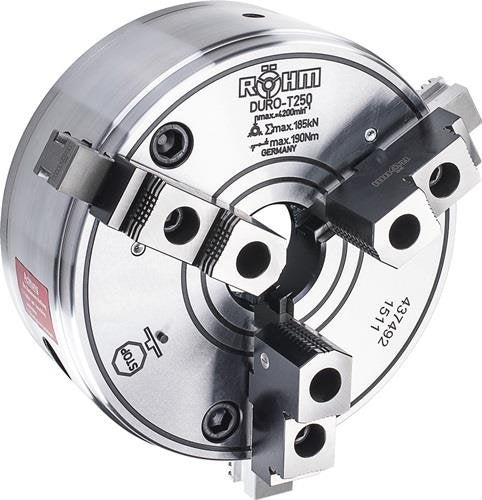

Wedge Bar Chuck DIN 55026/55021 Duro-T D.500mm with Reversible Jaws RÖHM

DURO-T wedge bar chucks are successfully used in areas that require extremely high clamping forces, high concentricity, and reliable, long-term repeat accuracy · Jaws according to DIN 55026, DIN 55021, ASA B 5.9 with cylindrical centering receptacle · for lathes · in conjunction with a base plate for stationary use on milling machines · dividing heads and machining centers · the jaws can be quickly and easily reversed, exchanged, or repositioned across the entire clamping range · the accuracy of the jaws is maintained if they are only used on the same chuck and if base and top jaws for recurring work are stored bolted together. · Technical features: · with jaw safety lock · chuck body stiffer (guarantees accuracy under higher load) · visible marking for quick jaw adjustment · external form including splash guard edge · concentricity and face runout tolerance twice as precise as required by DIN accuracy class 1 · lubrication points for heavily stressed sliding surfaces · with safety key (requirement according to EN 1550) Advantages: · higher clamping force · high jaw change repeat accuracy · optimization of wear parts · higher corrosion protection · base and top jaws from other manufacturers compatible Further technical characteristics: · Version: with one-piece reversible jaws · Ø: 500 mm · Standard: DIN 55026/55021 · Mounting type: front mounting
