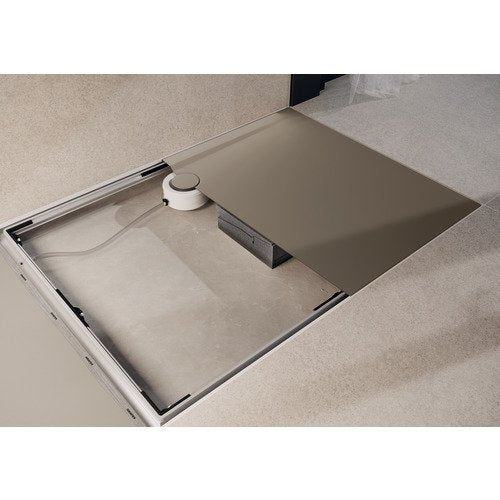

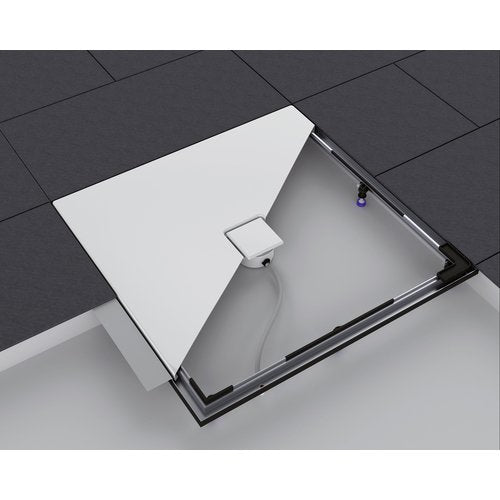

KALDEWEI Installation System Frame ESR Floor-Level

Description:
Mounting system for FLUSH-TO-FLOOR
installation of KALDEWEI shower surfaces
Installation type: flush-to-floor
Product:
ESR FLUSH-TO-FLOOR installation system frame
Suitable for the following shower surface
models: CONOFLAT, SCONA, SUPERPLAN,
SUPERPLAN XXL, SUPERPLAN PLUS,
CAYONOPLAN (up to and including 120cm)
Manufacturer: KALDEWEI
Item number: 6400xxxx0000
For shower surfaces: length x width in mm
External dimensions ESR FLUSH-TO-FLOOR:
Shower surface length + 28mm x shower
surface width + 28mm
Material: Aluminum profile with
pre-assembled sound insulation tape
Sound insulation KALDEWEI ESR FLUSH-TO-FLOOR:
According to DIN 4109/VDI 4100
for KALDEWEI shower surfaces in conjunction
with at least 2 anti-drumming pads
(Item no. 687675720000) (Details can be found
in the KALDEWEI sound insulation certificate,
issued by the Fraunhofer Institute for Building
Physics IBP)
Included in delivery:
Pre-assembled frame including all-round
sound insulation tape, sound-decoupled
foot units, movable, adjustable from above
and height-adjustable from 63-164 mm
(Minimum installation height 49 mm - not
adjustable)
Support rubbers and rubber mounting profiles
Sealing tape, 2x wall corner,
4x multifunction corner
internal sealing level
Formwork panels and demoulding aid
Laying aids for easy tiling
Floor fastening elements, installation instructions
Optional accessories:
ESR FLUSH-TO-FLOOR mounting adhesive, 310ml
for fixing the sealing elements
in the frame. (Item no. 584574690000)
In addition to the ESR frame,
a waste fitting with weep-water connection
is required.
