KALDEWEI Shower Tray ZIRKON 90x90 Alpine White

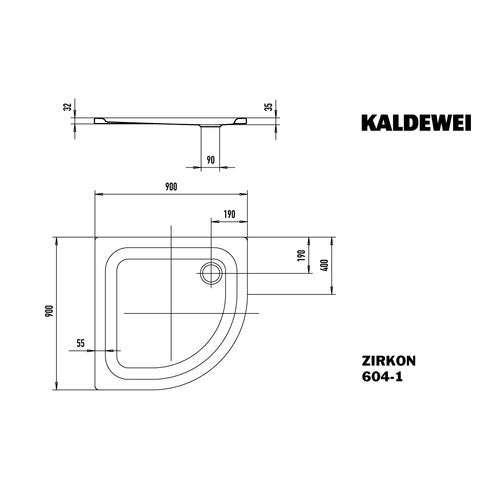

KALDEWEI ZIRKON Shower surface, 900x900x32 mm, Model No: 604-1

Product description:
Quarter circle shower surface with a spacious standing area. Ideal for corner installation.

EU TAXONOMY READY due to the official publication of EPDs

Here you can find the current Environmental Product Declaration (EPD):
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: ZIRKON
Model No: 604-1
Outer length (mm): 900
Outer width (mm): 900
Rim height (mm): 32
Depth (mm): 35
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Quarter circle
Installation: raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Grounding lug for equipotential bonding.
Weight (kg): 21.30
CO2 footprint (kg): 26.11

OPTIONAL Installation:
System-Installation-Box S-IX
Model No: System-Installation-Box SIX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Sealing set flush with floor
Model No: Sealing set flush with floor: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Central support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No: 5305: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

Tray installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the masonry
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet technology:
Waste fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4103: '.........'

Waste fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4104: '.........'

Waste fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4105: '.........'

Drain cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colours:
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Anti-slip enamelling: '...........'
Easy-care PERL-EFFECT: '...........'
Almost invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with the pearl effect.

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical examination:
TÜV Rheinland confirms that KALDEWEI's
Antislip/Full-Antislip enamelling has a
slip resistance according to evaluation group B
for wet barefoot areas (DIN 51097) and
according to evaluation group R10 for anti-slip
properties in workrooms and work areas
with increased risk of slipping (DIN 51130).

Note: Article number (GTIN) refers to the standard white version from the product family.
