KALDEWEI Shower Tray ZIRKON 80x80 alpine white

KALDEWEI ZIRKON Shower Surface, 800x800x32 mm, Model No.: 600-1

Product description:
Quadrant shower surface with generous standing area. Ideal for corner installation.

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The standard white variant of this product
is officially Cradle to Cradle certified® in Silver.

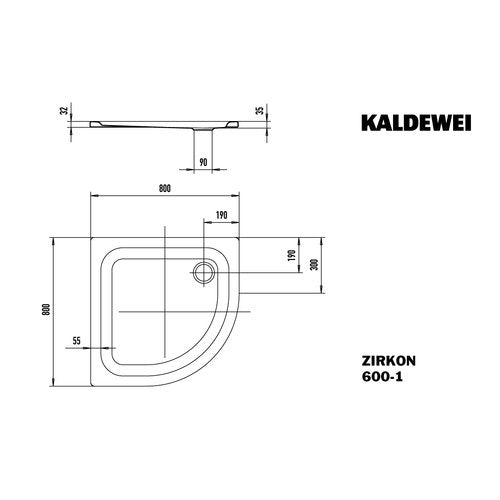

Model: ZIRKON
Model No.: 600-1
External length (mm): 800
External width (mm): 800
Rim height (mm): 32
Depth (mm): 35
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Quadrant
Installation: Raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Earthing lug for potential equalisation.
Weight (kg): 16.50
CO2 footprint (kg): 20.68

OPTIONAL Installation:
System Installation Box S-IX
Model No.: System Installation Box SIX: '.........'

Cut protection tape
Model No.: Cut protection tape: '.........'

Floor-level sealing set
Model No.: Floor-level sealing set: '.........'

Shower tray anti-drumming set DW-ADS
Model No.: DW-ADS: '.........'

Sealing set FLEX
Model No.: Sealing set FLEX: '.........'

Middle support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No.: 5305: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No.: 5300_PLUS: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No.: 5300: '.........'

Bath installation tape WES 130: For sound insulation and separation between product bottom edge and brickwork
Model No.: WES 130: '.........'

OPTIONAL Inlet/outlet technology:
Drain fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No.: 4103: '.........'

Drain fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No.: 4104: '.........'

Drain fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No.: 4105: '.........'

Drain cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No.: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colours:
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Anti-slip enamelling: '...........'
Easy-care PEARL-EFFECT: '...........'
Almost invisible anti-slip on the standing area INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Pearl-Effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy-care and hygienic.

Safety technical examination:
TÜV Rheinland confirms that KALDEWEI's
Antislip/Full Antislip enamelling has
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased slip risk (DIN 51130).

Attention: Article number (GTIN) refers to the standard white variant from the product family.
