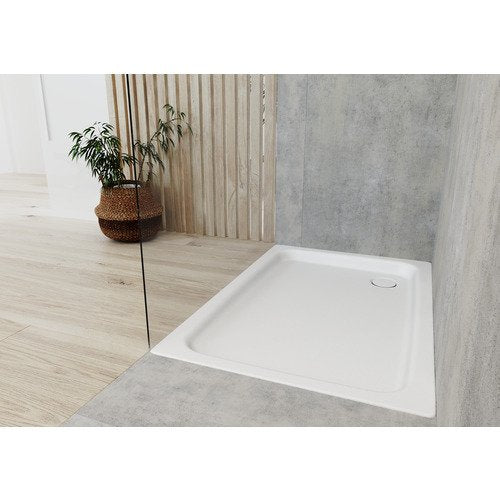

KALDEWEI Shower Tray DUSCHPLAN 80x90 Alpine White

KALDEWEI DUSCHPLAN Shower Surface, 800x900x32 mm, Model No: 544-1

Product Description:
Classic shower tray with 65mm depth. Ideal for raised installation.

EU TAXONOMY READY through the official publication of EPDs

Here you can find the current Environmental Product Declaration (EPD):
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% circular.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: DUSCHPLAN
Model No: 544-1

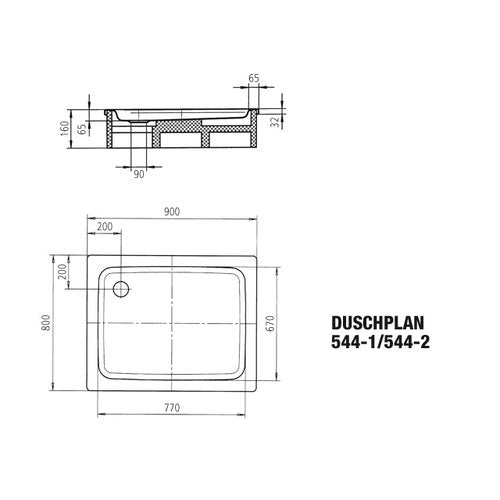

Outer Length (mm): 800
Outer Width (mm): 900
Rim Height (mm): 32
Depth (mm): 65
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product Specification:
Shower surface shape: Rectangle
Installation: raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Grounding lug for equipotential bonding.
Weight (kg): 20.30
CO2 footprint (kg): 26.41

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Tray connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Center support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No: 5305: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

System Installation Box S-IX
Model No: System Installation Box SIX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Floor-level sealing set
Model No: Floor-level sealing set: '.........'

Tray installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the masonry
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet Technology:
Waste fitting KA 90 flat: Chrome waste cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4104: '.........'

Waste fitting KA 90 vertical: Chrome waste cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4105: '.........'

Waste fitting KA 90 horizontal: Chrome waste cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4103: '.........'

Waste cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No: Waste cover KA 90: '.........'
Alpine White: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colours:
Alpine White: '...........'
Sanitary colours: '...........'

OPTIONAL Surfaces:
Easy-care PEARL-EFFECT: '...........'
Anti-slip surface Antislip enamelling: '...........'
Virtually invisible anti-slip on the standing area INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces are not combinable with Pearl Effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical investigation:
TÜV Rheinland confirms for KALDEWEI's
Antislip/Full Antislip enamelling a
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in work areas and workplaces
with increased slip risk (DIN 51130).

Attention: Article number (GTIN) refers to the standard white variant from the product family.
