KALDEWEI Shower Tray DUSCHPLAN 80x80 Alpine White

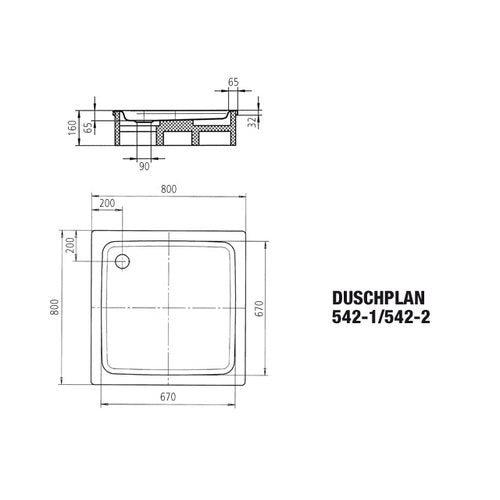

KALDEWEI DUSCHPLAN Shower tray, 800x800x32 mm, Model No: 542-1

Product description:
Classic shower tray with 65mm depth. Ideal for raised installation.

EU TAXONOMY READY due to official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% circular.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: DUSCHPLAN
Model No: 542-1
Outer length (mm): 800
Outer width (mm): 800
Rim height (mm): 32
Depth (mm): 65
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product specification:
Shower tray shape: Square
Installation: Not flush with the floor
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Earthing lug for potential equalisation.
Weight (kg): 19.00
CO2 footprint (kg): 24.55

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

System Installation Box S-IX
Model No: System Installation Box SIX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Sealing set Floor-level
Model No: Sealing set Floor-level: '.........'

Central support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No: 5305: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the brickwork
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet Technology:
Waste fitting KA 90 horizontal: chrome waste cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4103: '.........'

Waste fitting KA 90 flat: chrome waste cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4104: '.........'

Waste fitting KA 90 vertical: chrome waste cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled waste cover for KA 90
Model No: 4105: '.........'

Waste cover KA 90: in addition to fittings 4103, 4104, 4105
Model No: Waste cover KA 90: '.........'
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower tray colours:
Alpine white: '...........'
Sanitary colours: '...........'

OPTIONAL Surfaces:
Anti-slip surface Antislip enamelling: '...........'
Easy-care PEARL EFFECT: '...........'
Almost invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Pearl effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical examination:
TÜV Rheinland confirms that
KALDEWEI's Antislip/Full Antislip enamelling has
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased slip hazard (DIN 51130).

Attention: Item number (GTIN) refers to the standard white version from the product family.
