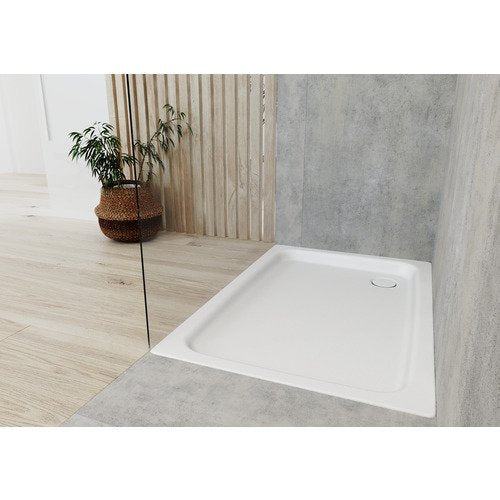

KALDEWEI Shower Tray DUSCHPLAN 75x120 alpine white

KALDEWEI DUSCHPLAN Shower Surface, 750x1200x32 mm, Model No: 417-1

Product Description:
Classic shower tray with 65mm depth. Ideal for raised installation.

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The standard white version of this product
is officially Cradle to Cradle Certified® Silver.

Model: DUSCHPLAN
Model No: 417-1
External Length (mm): 750
External Width (mm): 1200
Rim Height (mm): 32
Depth (mm): 65
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product Specification:
Shower surface shape: Rectangle
Installation: Raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Earthing lug for equipotential bonding.
Weight (kg): 25.10
CO2 footprint (kg): 33.27

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Center support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No: 5305: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

System installation box S-IX
Model No: System installation box SIX: '.........'

Floor-level sealing set
Model No: Floor-level sealing set: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the masonry
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet Technology:
Drain fitting KA 90 horizontal: Chrome drain cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4103: '.........'

Drain fitting KA 90 flat: Chrome drain cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4104: '.........'

Drain fitting KA 90 vertical: Chrome drain cover, hair trap sieve included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4105: '.........'

Drain cover KA 90: in addition to fittings 4103, 4104, 4105
Model No: Drain cover KA 90: '.........'
Alpine White: '...........'
Sanitary colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colors:
Alpine White: '...........'
Sanitary colors: '...........'

OPTIONAL Surfaces:
Anti-slip enamelling: '...........'
Easy-care PEARL EFFECT: '...........'
Almost invisible anti-slip on the standing area INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces are not compatible with Pearl Effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical investigation:
TÜV Rheinland confirms that
KALDEWEI's Antislip/Full Antislip enamelling has a
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workplaces and work areas
with increased risk of slipping (DIN 51130).

Attention: The article number (GTIN) refers to the standard white variant from the product family.
