KALDEWEI Shower Tray DUSCHPLAN 75x100 Alpine White

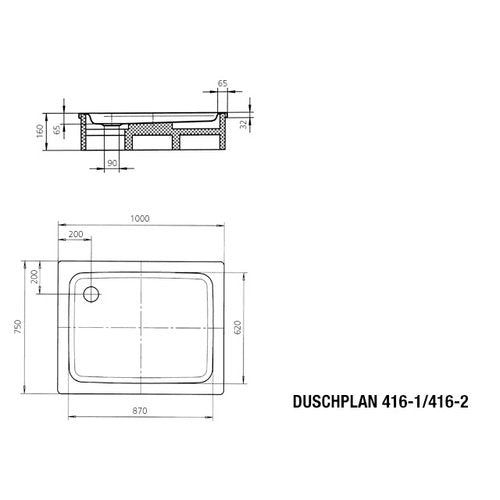

KALDEWEI DUSCHPLAN shower surface, 750x1000x32 mm, Model No.: 416-1

Product description:
Classic shower tray with 65mm depth. Ideal for raised installation.

EU TAXONOMY READY due to official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: DUSCHPLAN
Model No.: 416-1
Outer length (mm): 750
Outer width (mm): 1000
Rim height (mm): 32
Depth (mm): 65
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Rectangle
Installation: raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Earthing lug for potential equalization.
Weight (kg): 21.30
CO2 footprint (kg): 28.24

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No.: DWS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No.: WAS 70: '.........'

Shower tray anti-drumming set DW-ADS
Model No.: DW-ADS: '.........'

Center support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No.: 5305: '.........'

System Installation Box S-IX
Model No.: System-Installation-Box SIX: '.........'

Sealing set FLEX
Model No.: Sealing set FLEX: '.........'

Cut protection tape
Model No.: Cut protection tape: '.........'

Floor-level sealing set
Model No.: Floor-level sealing set: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No.: 5300_PLUS: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between product bottom edge and masonry
Model No.: WES 130: '.........'

OPTIONAL Waste/overflow technology:
Waste fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enameled drain cover for KA 90
Model No.: 4103: '.........'

Waste fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enameled drain cover for KA 90
Model No.: 4104: '.........'

Waste fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enameled drain cover for KA 90
Model No.: 4105: '.........'

Drain cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No.: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colors:
Alpine white: '...........'
Sanitary colors: '...........'

OPTIONAL Surfaces:
Easy-care PEARL EFFECT: '...........'
Anti-slip enameling: '...........'
Almost invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with pearl effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety-technical examination:
TÜV Rheinland confirms that KALDEWEI's
Antislip/Full-antislip enameling has a
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased risk of slipping (DIN 51130).

Attention: Item number (GTIN) refers to the standard white variant from the product family.
