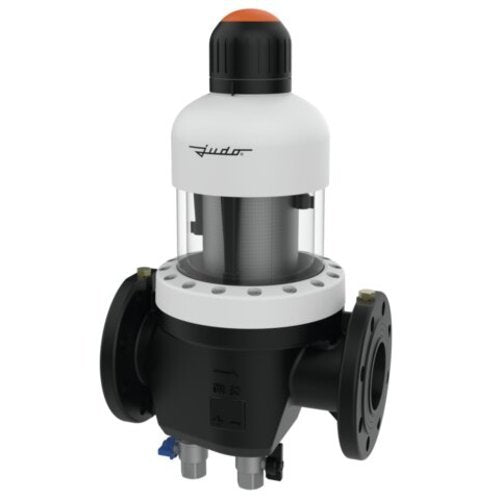

JUDO Backwash Protective Filter JPF-QC DN80

JUDO PROFI-QUICK CONTROL backwash protective filter JPF-QC DN 80 according to DIN EN 13443-1 and DIN 19628, with DIN-DVGW certification. For water up to 30 C. For filtering fine-grained and solid impurities in water, which can cause corrosion in water-carrying pipelines as aeration elements and lead to malfunctions of control and regulating devices. Design: Filter housing made of high-quality gray cast iron PN 10, corrosion-resistant coated with plastic inside and out, with flange connection according to DIN EN 1092-2. Filter mesh made of stainless steel. Large handwheel for backwashing the sieve insert according to the highly effective point-rotation system for optimal germ protection while simultaneously cleaning the sight glass without interrupting the water supply. Sludge trap at the filter inlet for collecting coarse particles. With pressure gauge connection (2 x 1/4''). Technical data: Pipe connection 80 DN Nominal flow rate* at Dp 0.2 (0.5) bar 50 (65) m3/h Operating pressure max. 10 bar Operating temperature max. 30 C Mesh size 0.1 mm Installation length 320 mm Model JPF-QC DN 80 Also available with special mesh sizes 0.03/0.32 and 0.5 mm. * for drinking water with clean filter
