JUDO Pipe Separator BA JRT-BA IL 1

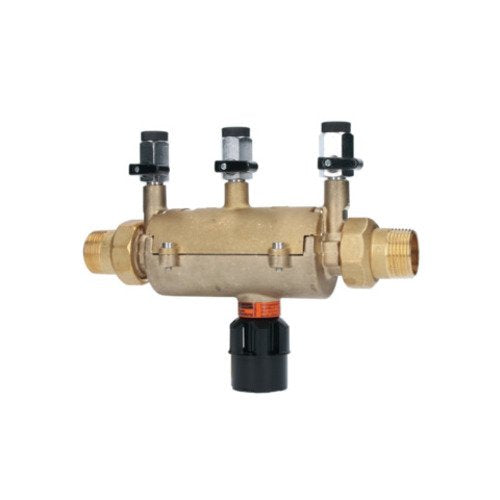

JUDO Pipe Disconnector JRT-BA IL 1'' Type BA Inline, based on the 3-chamber principle with 2 backflow preventers and a ventilatable mid-pressure zone, for protection up to fluid category 4, according to DIN EN 1717 and DIN 1988-100, DVGW-certified. Design: Brass housing, plastic backflow preventers, EPDM and NBR diaphragms and seals, other metallic water-contacting internal components made of brass and plastic. Scope of delivery includes connection spigots for functional testing, plastic discharge funnel, and connection fittings with male threads. A dirt filter must be installed upstream of the pipe disconnector by the customer! Shut-off valves are also recommended upstream and downstream of the pipe disconnector. Technical data: Kvs value (at 1 bar pressure loss) 6.6 m3/h Nominal flow (at 1.5 bar pressure loss) 7.9 m3/h Connection thread (male thread) 1 inch Installation length 248 mm max. temperature 65 C max. operating pressure 10 PN Minimum inlet pressure 1.5 bar Wastewater connection 40 mm Nominal diameter 25 DN Model JRT-BA IL 1''
