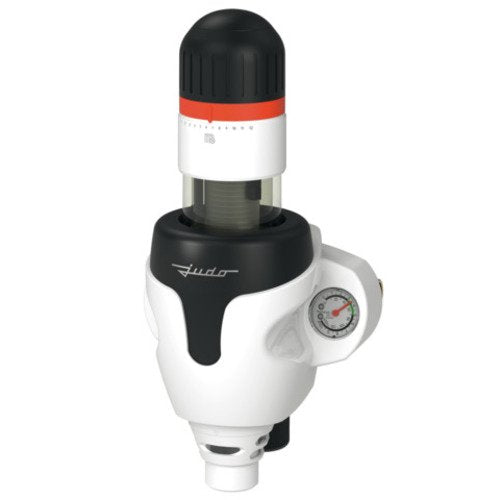

JUDO Domestic Water Station JPM-QC 1

JUDO PROMI-QUICK CONNECTION Domestic Water Station JPM-QC 1'' with patented single-screw connection technology, in accordance with DIN EN 13959, DIN EN 13443-1, DIN 19628 and DIN EN 1567, with DIN-DVGW certification, for water up to 30 C. For pressure regulation and filtration of fine-grained and solid impurities in water, which can cause corrosion as aeration elements in water-carrying pipelines and lead to malfunctions in control and regulating devices. Design: Filter housing made of high-quality plastic PN 16, built-in rotary flange with patented bayonet connection made of brass with screw connection (threaded connection according to DIN EN 10226-1) and patented single-screw connection technology, horizontal or vertical installation possible, filter mesh made of stainless steel, large handwheel for backwashing the sieve insert according to the highly effective point-rotation system for optimal germ protection with simultaneous cleaning of the sight glass without interrupting the water supply. Pressure reducer and adjustment handwheel (factory-set downstream pressure of 4 bar), downstream pressure adjustment range from 1.5 - 6 bar*, sound-tested group 1 without restrictions, upstream and downstream pressure gauges, backflow preventer, integrated free outlet, backwash month display and rinse water connection (d 50 mm) according to DIN 1988 or DIN EN 1717. Technical data: Pipe connection 1 inch Nominal flow rate** 3.6 m3/h Operating pressure max. 16 bar Operating temperature max. 30 C Mesh size 0.1 mm Installation length 195 mm Model JPM-QC 1'' * Depending on operating conditions, it may be necessary to increase the downstream pressure (to adjust the ratio of upstream pressure to downstream pressure). ** according to DIN EN 1567 for drinking water with a clean filter
