IS connection for shower trays, vertical DN50, d: 90mm, without drain cover

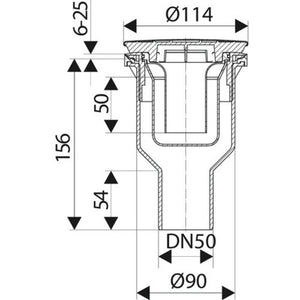

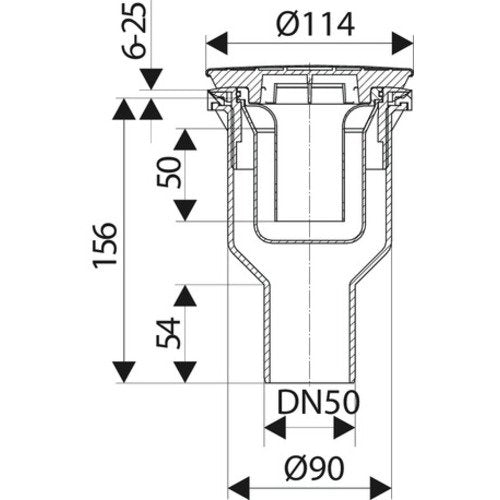

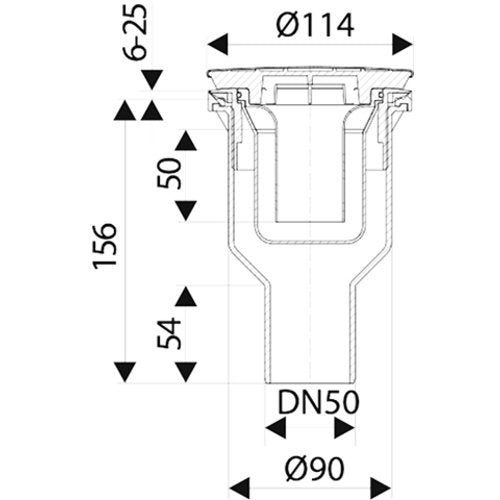

Shower Tray Waste Fitting Dallmer Type ORIO, Ideal Standard Version. Without waste cover, with black connecting parts. For 90 mm connection cone. Waste pipe DN50, vertical outlet. With mounting tool and construction protection cap. Factory pre-assembled, ready for installation. Standard: DIN/EN 274 Surface: visible parts in black Installation dimensions (WxDxH): 114x114x156 mm Installation height: 156 mm, for 100 mm bore hole Waste cone (diameter): 90 mm Connection: DN50 Drainage capacity according to DIN/EN 274: 0.51 l/s (at 15 mm water accumulation height) Water seal depth: 50 mm Weight: 0.200 kg   Exclusive provider: Ideal Standard Series: Ultra Flat S Item no.: K863767
