IS drain box large, DN50, 460x320x100mm, right

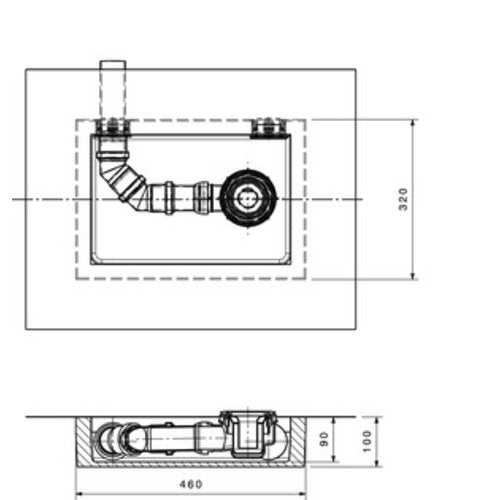

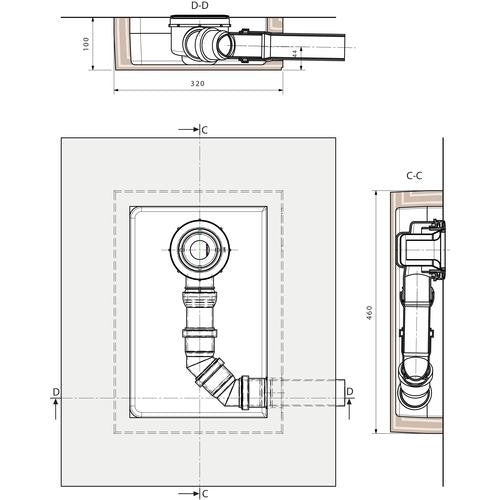

Drain box for use in screed construction. Pre-assembly by gluing onto the raw concrete before screed laying. Subsequent installation into the floor structure possible at any time. Guarantees a watertight integration of the drain fitting into the room-side AIV according to DIN 18534. A reversible installation of the shower tray is thus possible. Made of EPS with a watertight coated inner chamber. With factory-applied sealing fleece. With drain fitting according to DIN/EN 274 with ball joint. For 90 mm drain hole in the shower tray. Drain pipe DN50, watertight through the outer casing. Right connection. With mounting tool and construction protective cap. Standard: DIN EN 274, for connection to the room-side AIV according to DIN 18534 Surface: visible parts in black Installation dimensions (WxDxH): 460x320x100 mm Drain cone (diameter): 90 mm Connection: DN50, right-sided Drainage capacity according to DIN/EN 274: 0.45 l/s (at 15 mm water accumulation height) Water seal height: 50 mm Weight: 1.300 kg Manufacturer: Ideal Standard Series: Ultra Flat S Item no.: K863267
