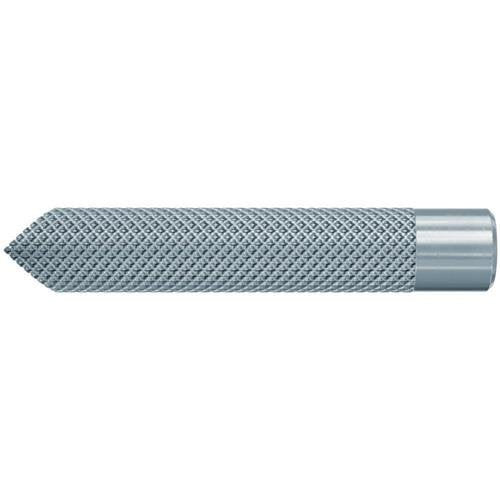

Internal Threaded Anchor RG, 16 x 90 M10, 10, FISCHER

The fischer internal thread anchor RG M I is made of electrogalvanized steel. The internal thread anchor is a system accessory for the various fischer resin capsules or injection mortars. For single fixings, application with the pre-portioned resin capsule is particularly economical. When installing with the resin capsule, the RG M I is set with a rotary hammer in a rotating and striking motion. During the setting process, the resin capsule is destroyed, mixed, and activates the mortar compound. When installing with injection mortars, the internal thread anchor is pushed into the drill hole by hand with slight rotating movements. The various mortars bond the RG M I fully to the drill hole wall. The internal thread anchor can be dismantled flush with the surface and is primarily suitable for temporary fixings, for example of machines, indoors. Further technical properties: · VDS approval: Yes · Contents: 10 · Application conditions: Fire protection classification · Material: Electro-galvanized steel 5.8 · Max. screw-in depth: 23 mm · Min. screw-in depth: 10 mm · Min. anchoring depth: 90 mm
