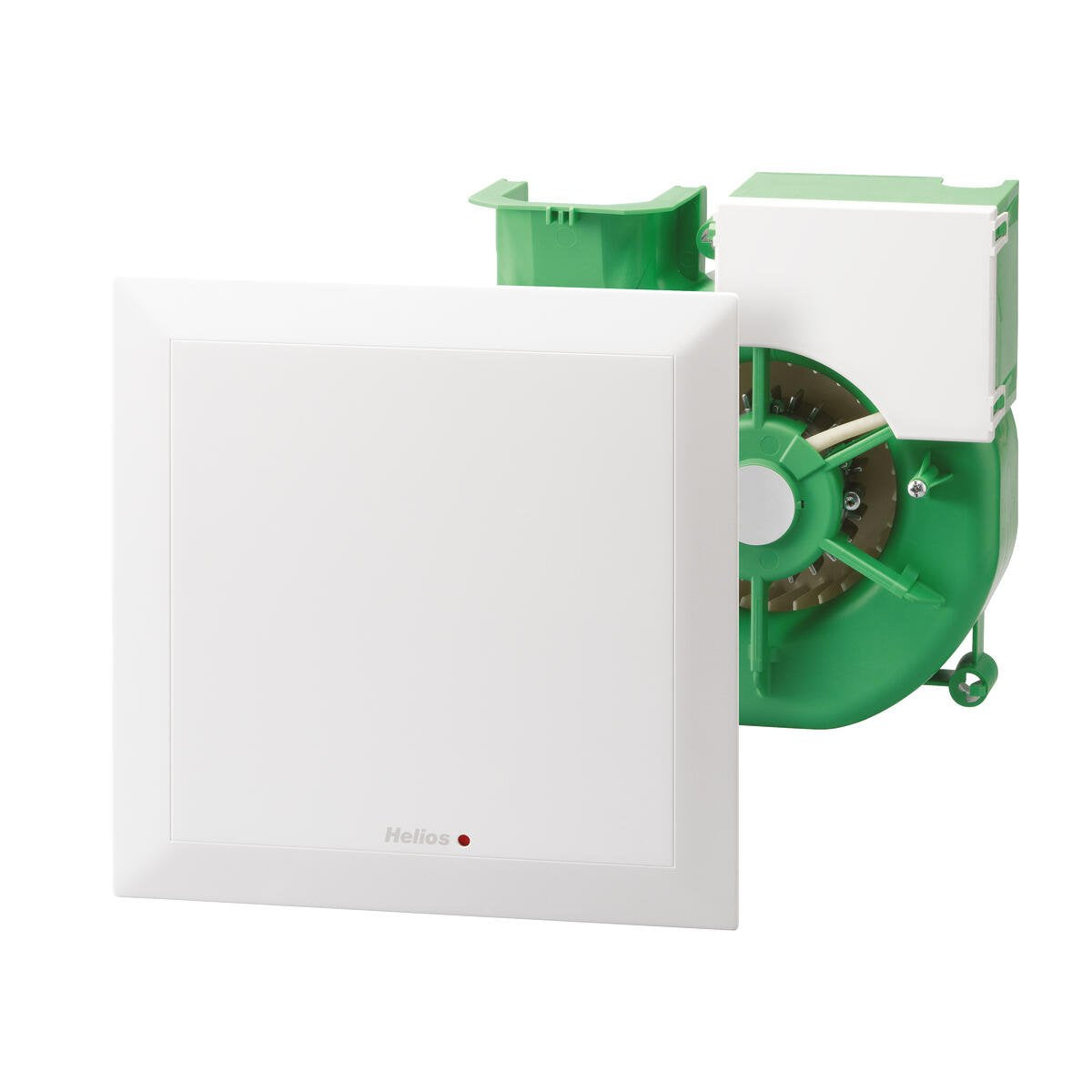

Helios ELS-VNC 60 Fan Insert

Fan insert with 60 m3/h volume flow with codable overrun and interval operation. Start-up delay of 0 or 45 seconds, overrun time of 6, 10, 15 or 21 minutes, and interval time of 4, 8, 12 or 24 hours selectable. Ready-to-operate delivery with flat interior fascia (alpine white) and ultraSilence® technology. Standard with permanent filter and filter cleaning indicator. Integrated plug connection for electrical connection. Protective insulation, Class II, IP X5. For installation in zone 1 of wet rooms. Maintenance-free, ball-bearing mounted energy-saving motor 230 V~, 50 Hz, 18 W. Sound power 39 dB (A), sound pressure 35 dB(A).** at AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Specification according to DIN 18017, T.3, edition 1990, section 6.2.4. Footnote 3.Area of applicationAutomatic, periodic ventilation of rooms with irregular use (hotels, holiday apartments). Individually adjustable overrun times increase comfort in private areas.Technical DataOverrun time: 6, 10, 15, 21Volume flow approx. m³/h: 60Power consumption approx. Watt: 18Sound pressure level 1) approx. dB(A) at 10 m² equivalent absorption area: 35Sound power level 1) LWA approx. dB(A): 39Electrical connection: 230 V~, 50HzElectrical supply line in mm²: NYM-O 3 x 1.5, 4 x 1.5*Protection class II without PEConnection according to wiring diagram no.: SS-881All performance and noise data according to DIN 24163, DIN 24166, DIN 45635, DIN 449741) in combination with housing type ELS-GU, side discharge.* for deactivation of the automatic function.
