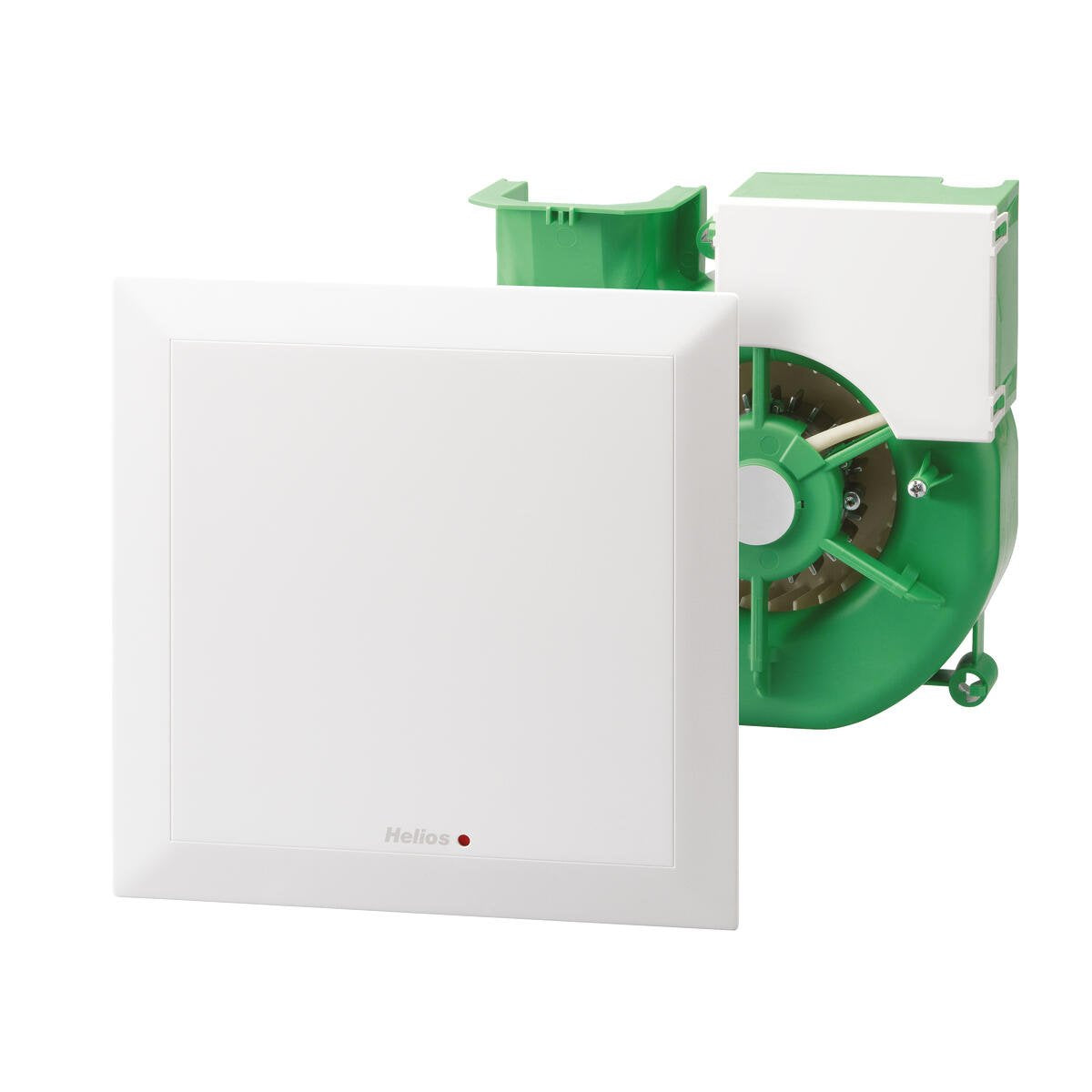

Helios Fan Insert ELS-VF 60, 8161

Fan insert with 60 m3/h volume flow and electronic, humidity-dependent automatic control. When the set humidity level is reached, automatic operation continues until the humidity drops to normal room air humidity. When switched on/off manually, a run-on time of 6, 10, 15 or 21 minutes is selectable, and a start-up delay of 0 or 45 seconds. Ready for operation delivery with flat internal facade (alpine white) and ultraSilence® technology. Standard with permanent filter and filter cleaning indicator. Integrated plug connection for electrical connection. Protective insulation, Class II, IP X5. For installation in zone 1 of wet rooms. Maintenance-free, ball-bearing-mounted energy-saving motor 230 V~, 50 Hz, 18 W. Sound power 39 dB (A), sound pressure 35 dB(A).** at AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Information according to DIN 18017, T.3, edition 1990, section 6.2.4. Footnote 3.Area of applicationIdeal for ventilating bathrooms and humidity-laden rooms to prevent mold and moisture damage. Barrier-free, due to automatic function.Technical dataRun-on time: 15Volume flow approx. m³/h: 60Power consumption approx. Watt: 18Sound pressure level 1) approx. dB(A) at 10 m² equivalent absorption area: 35Sound power level 1) LWA approx. dB(A): 39Electrical connection: 230 V~, 50HzElectrical supply line in mm²: NYM-O 3 x 1.5, NYM-O 4 x 1.5*Protection class II without PEConnection according to wiring diagram no.: SS-881All performance and noise data according to DIN 24163, DIN 24166, DIN 45635, DIN 449741) in combination with housing type ELS-GU, side discharge.* for deactivation of the automatic function
