Art. no.
06742103

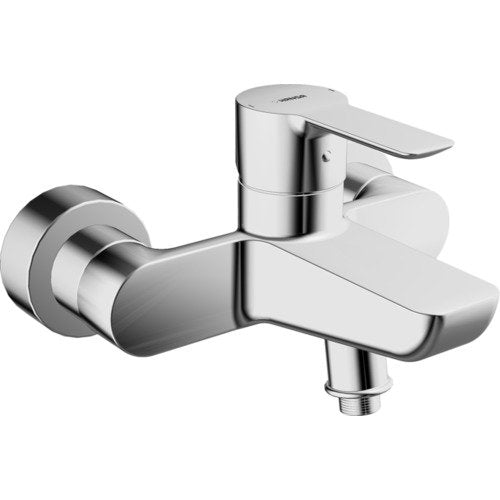

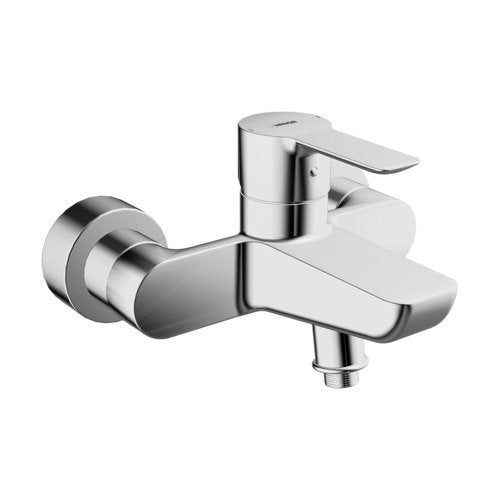

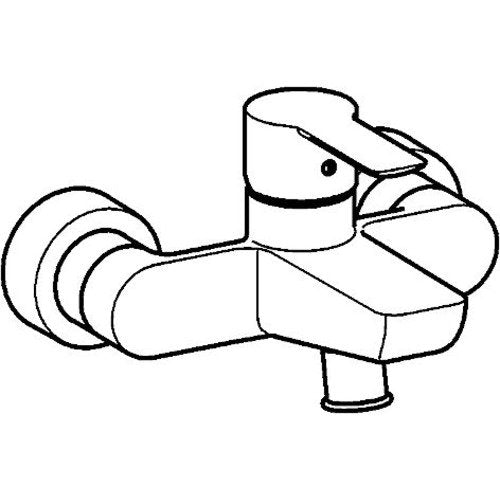

Hansa Hansaligna 0674 Single-Lever Bath Mixer, chrome
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Only a few left
3 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
GENERAL ATTRIBUTES:
• Product group: Bath and shower mixer
• Installation type: Wall mounted
• Technical feature: Single lever mixer
• Surface: Chrome
• BIM data available: Yes
PRODUCT FEATURES:
• Aerator type: CASCADE® aerator, CACHÉ® aerator, screwed directly into the faucet spout without a mouthpiece
• Connection: S-connectors, cover(s), silencer
• Lever/handle type: Single lever handle/grip, lever with H+C marking
• Spout type: Fixed spout
• Diverter type: Pull diverter, Automatic reset
• Temperature settings: Temperature limiter, hot water stop adjustable (retrofittable)
• Mechanical parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment, backflow preventer
• Special features: Faucet body made of dezincification-resistant brass (DZR)
• Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717)
FLOW PROPERTIES:
• Flow at 300 kPa: 20.40 l/min / 13.20 l/min
REGULATIONS / SPECIFICATIONS:
• EN Standard: EN 817
APPROVALS:
• DVGW: NW-6506CN0315
• ABP: PA-IX 29273/IB
• ACS: 16 ACC NY 205

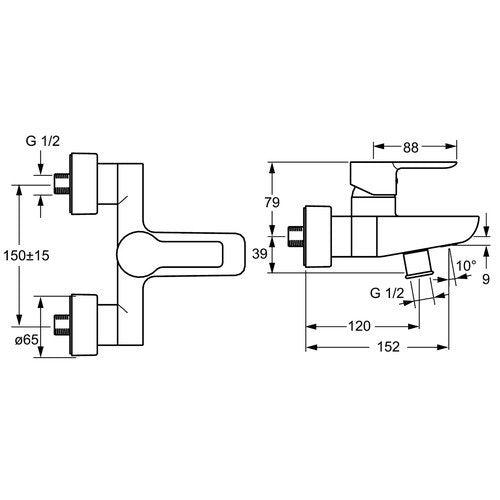

TECHNICAL PROPERTIES:
• DN size: DN15
• Projection: 152 mm
• Material: Brass
• Hot water supply: max. +90°C
• Working pressure: 100 - 1000 kPa
• Connection size: G1/2
• Installation distance: cc150 ± 15 mm
• Safety device (EN1717): EB
LOGISTICS:
• Gross weight: 2.52 kg
• Packaging dimensions: 210.0 x 176.0 x 162.0
• Product group: Bath and shower mixer
• Installation type: Wall mounted
• Technical feature: Single lever mixer
• Surface: Chrome
• BIM data available: Yes
PRODUCT FEATURES:
• Aerator type: CASCADE® aerator, CACHÉ® aerator, screwed directly into the faucet spout without a mouthpiece
• Connection: S-connectors, cover(s), silencer
• Lever/handle type: Single lever handle/grip, lever with H+C marking
• Spout type: Fixed spout
• Diverter type: Pull diverter, Automatic reset
• Temperature settings: Temperature limiter, hot water stop adjustable (retrofittable)
• Mechanical parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment, backflow preventer
• Special features: Faucet body made of dezincification-resistant brass (DZR)
• Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717)
FLOW PROPERTIES:
• Flow at 300 kPa: 20.40 l/min / 13.20 l/min
REGULATIONS / SPECIFICATIONS:
• EN Standard: EN 817
APPROVALS:
• DVGW: NW-6506CN0315
• ABP: PA-IX 29273/IB
• ACS: 16 ACC NY 205
TECHNICAL PROPERTIES:
• DN size: DN15
• Projection: 152 mm
• Material: Brass
• Hot water supply: max. +90°C
• Working pressure: 100 - 1000 kPa
• Connection size: G1/2
• Installation distance: cc150 ± 15 mm
• Safety device (EN1717): EB
LOGISTICS:
• Gross weight: 2.52 kg
• Packaging dimensions: 210.0 x 176.0 x 162.0
