Art. no.
06670103

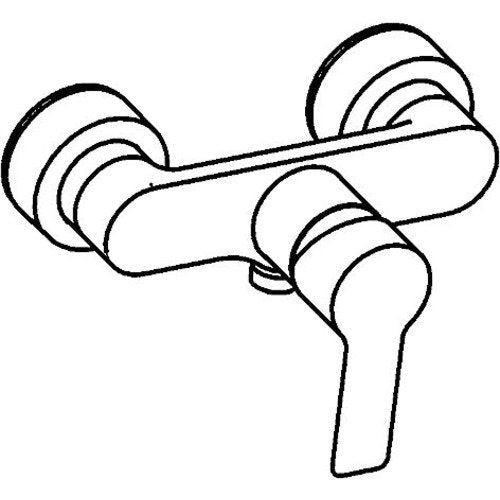

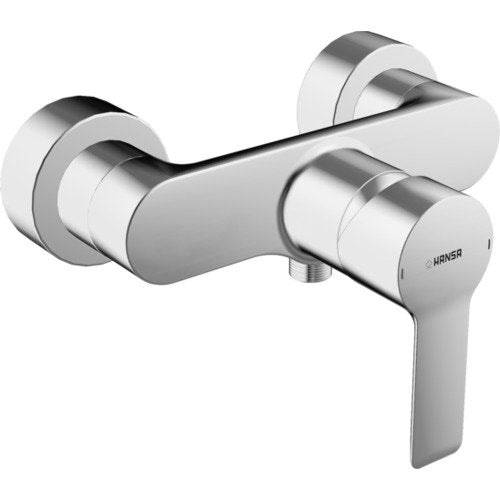

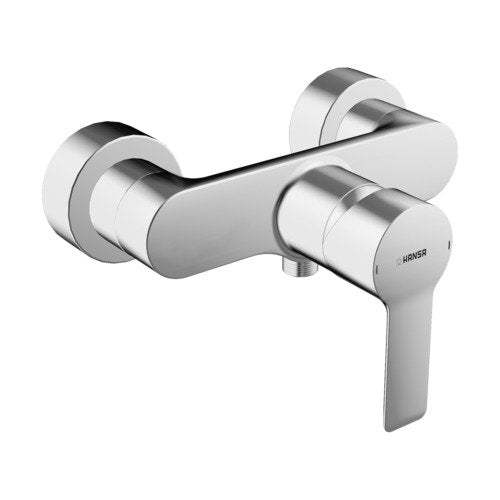

Hansa Hansaligna 0667 Chrome Single-Lever Shower Mixer
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
295,51 €
Unavailable
Only a few left
6 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Hansa Hansaligna 0667 Chrome Single-Lever Shower Mixer
295,51 €
GENERAL ATTRIBUTES:
• Product group: Shower mixer
• Installation type: Wall-mounted
• Technical feature: Single-lever mixer
• Finish: Chrome
• BIM data available: Yes
PRODUCT FEATURES:
• Connection: S-connections, cover(s), silencer
• Lever/handle type: Single-lever handle, lever with H+C marking
• Temperature settings: Temperature limiter, adjustable hot water stop (retrofittable)
• Mechanical parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment, backflow preventer
• Special features: Faucet body made of dezincification-resistant brass (DZR)
• Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717)
FLOW PROPERTIES:
• Flow rate at 300 kPa: 21.00 l/min
REGULATIONS / STANDARDS:
• EN Standard: EN 817
APPROVALS:
• DVGW: NW-6506CN0315
• ABP: PA-IX 29273/IB
• ACS: 16 ACC NY 205
TECHNICAL PROPERTIES:
• DN size: DN15
• Hot water supply: max. +90°C
• Operating pressure: 50 - 1000 kPa
LOGISTICS:
• Gross weight: 1.86 kg
• Packaging dimensions: 208.0 x 173.0 x 128.0
• Product group: Shower mixer
• Installation type: Wall-mounted
• Technical feature: Single-lever mixer
• Finish: Chrome
• BIM data available: Yes
PRODUCT FEATURES:
• Connection: S-connections, cover(s), silencer
• Lever/handle type: Single-lever handle, lever with H+C marking
• Temperature settings: Temperature limiter, adjustable hot water stop (retrofittable)
• Mechanical parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment, backflow preventer
• Special features: Faucet body made of dezincification-resistant brass (DZR)
• Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717)
FLOW PROPERTIES:
• Flow rate at 300 kPa: 21.00 l/min
REGULATIONS / STANDARDS:
• EN Standard: EN 817
APPROVALS:
• DVGW: NW-6506CN0315
• ABP: PA-IX 29273/IB
• ACS: 16 ACC NY 205
TECHNICAL PROPERTIES:
• DN size: DN15
• Hot water supply: max. +90°C
• Operating pressure: 50 - 1000 kPa
LOGISTICS:
• Gross weight: 1.86 kg
• Packaging dimensions: 208.0 x 173.0 x 128.0
