Art. no.
49542203

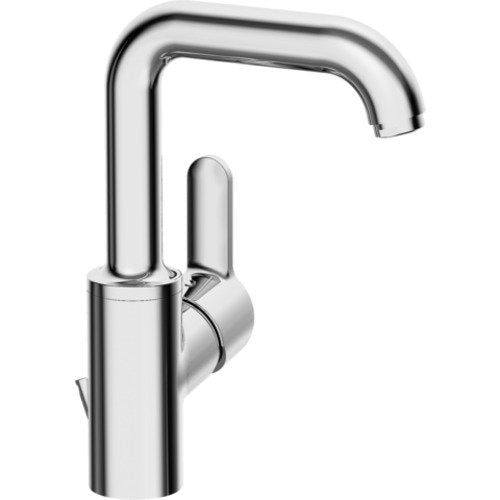

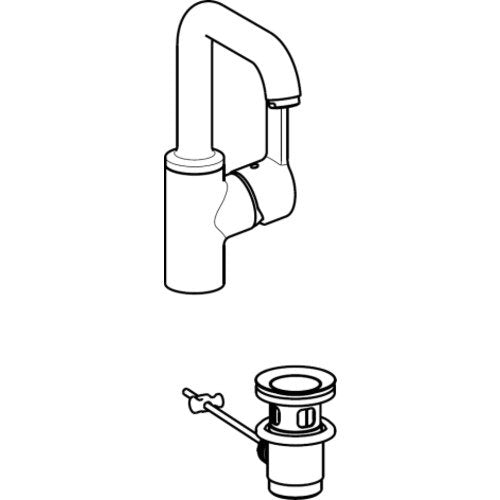

HA Basin mixer Hansaprimo 4954 side-operated, chrome
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
222,00 €
Unavailable
In stock
32 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
HA Basin mixer Hansaprimo 4954 side-operated, chrome
222,00 €
GENERAL ATTRIBUTES:
• Product Group: Basin Mixer
• Installation Type: Deck mounted
• Technical Feature: Single lever mixer, Side operated
• Finish: Chrome
• BIM data available: Yes
PRODUCT PROPERTIES:
• Aerator Type: PCA® constant flow rate regardless of flow pressure
• Connection: Connection via flexible pressure hoses DVGW W270 approved
• Installation: 1-hole
• Lever/Operating Handle Type: Single operating lever/handle, Lever with H+C marking
• Spout Type: Swivelling spout
• Extension: Pop-up waste with pull rod
• Temperature Settings: Temperature limiter, Adjustable hot water stop (retrofittable)
• Mechanical Parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment
• Special Features: Faucet body made of dezincification-resistant brass (DZR), Rapid installation system
FLOW PROPERTIES:
• Flow rate at 300 kPa (flow limiter): 6.00 l/min
REGULATIONS / STANDARDS:
• EN Standard: EN 817
APPROVALS:
• DVGW: NW-6506CN0242
• ABP: P-IX 29059/IO
• CSTB: 322-M1-20/1
• ACS: 15 ACC LY 432
TECHNICAL PROPERTIES:
• DN size: DN15
• Projection: 142 mm
• Spout Swivel Range: 150° (360°)
• Material: Brass
• Hot Water Supply: max. +80°C
• Working Pressure: 50 - 1000 kPa
• Connection Size: G3/8
LOGISTICS:
• Gross weight: 2.84 kg
• Package dimensions: 407.0 x 265.0 x 119.0
