GRÜNBECK filling line thermaliQ: FB2

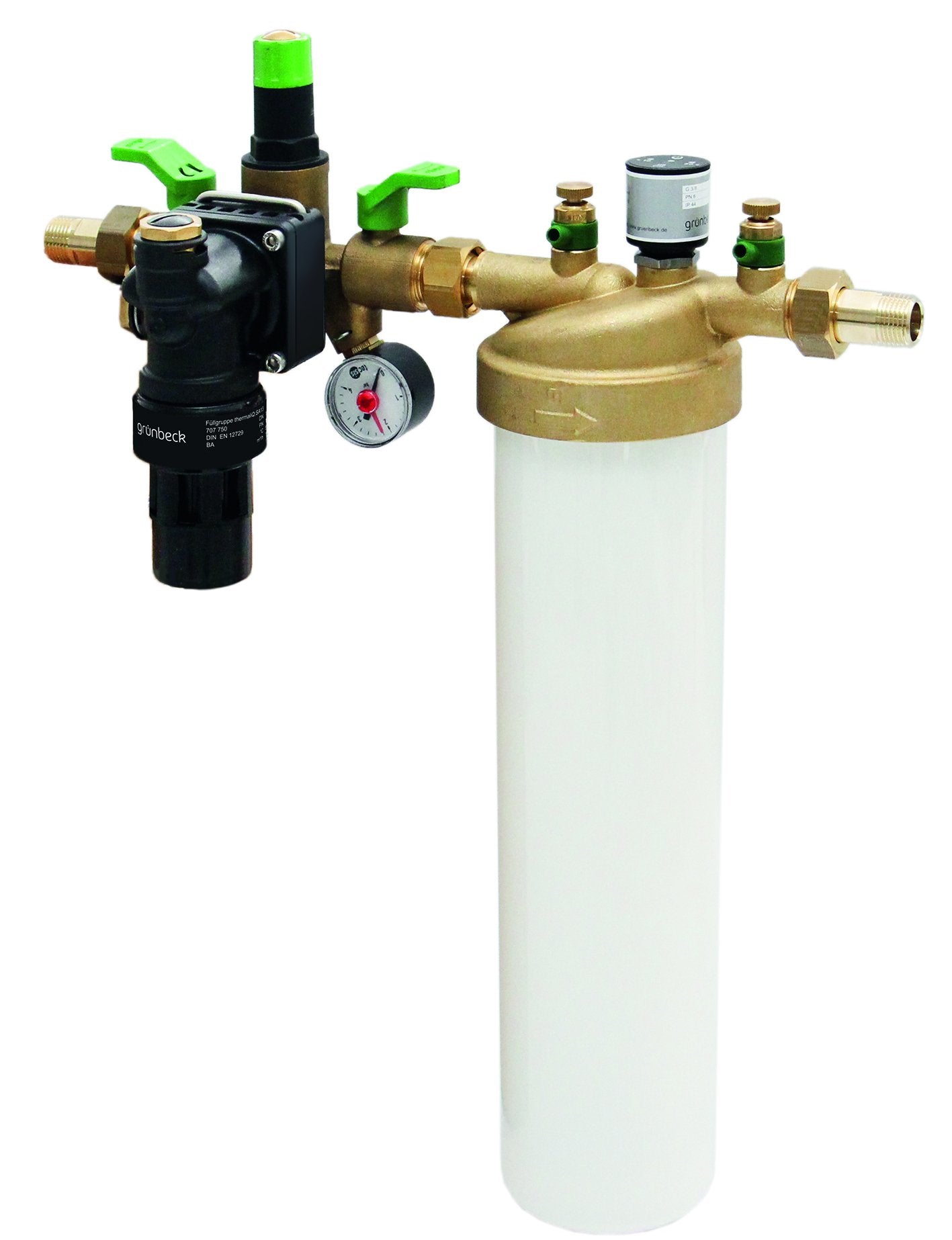

Filling Line thermaliQ:FB2: The thermaliQ:FB2 filling line is used for the safe and standard-compliant connection of a heating system to the domestic water installation. The thermaliQ:FB2 filling line protects the domestic water from backflow of water from the heating circuit. The thermaliQ:FB2 filling line is used for demineralizing raw water for initial filling or refilling of heating systems. The thermaliQ:FB2 filling line consists of a system separator unit, a pressure reducer unit, and a treatment unit. The raw water for heating system filling flows through the shut-off valve on the inlet side and the dirt trap into the system separator unit. After the system separator unit, the water flows through the pressure reducer. The pressure reducer ensures that the filling pressure in the heating system is not exceeded. The filling pressure is displayed on the manometer. Treatment unit including conductivity measuring cell and desaliQ:HB2 filling cartridge. Structure: - System separator unit - Pressure reducer unit - Treatment unit Technical data: Connection: R 1/2
