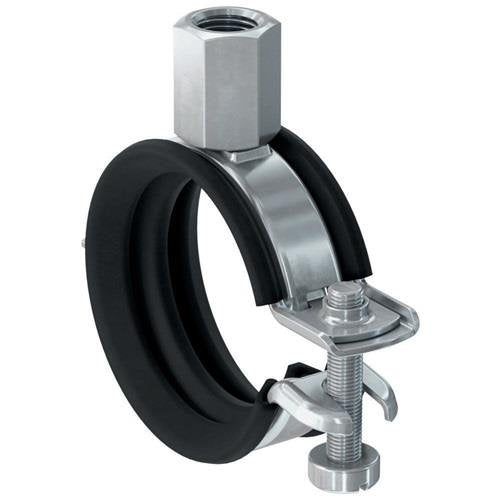

Hinge Pipe Clamp FGRS Clamping Range 108-115mm Connection M8/M10 Galvanized

The fischer pipe clamp FGRS Universal is a one-screw pipe clamp made of electro-galvanised steel, material grade DD11, with a combi-connection thread M8 / M10 or thread M8. The quick-release fastener and the combi-connection thread enable simple and time-saving installation. The quick-release fastener clicks into place, guaranteeing secure pipe adjustment without the clamp springing open. This allows pipes with an outer diameter of 12-66 mm to be securely fastened indoors with a threaded rod or stud screw. The pipe clamp, with its chlorine- and silicone-free sound insulation insert, complies with the requirements of DIN 4109. Marketing Claim: The hinged pipe clamp with simple and secure quick-release fastener. Advantages: The sound insulation test report guarantees objectively tested functional safety. The complete and seamless diameter clamping range allows for the fastening of any pipe size. The unique quick-release fastener with all-round rim enables secure and convenient installation. The clamp band with pronounced beads on the edge provides a firm hold for the sound insulation insert and simplifies pipe adjustment. The compact design of the pipe clamp allows for easy retro-insulation. The combi-TX slotted thread of the screw increases flexibility during installation. Top Features: With sound insulation test report for objectively tested functional safety. Complete and seamless diameter clamping range for fastening any pipe size. Quick-release fastener with all-round rim for secure and convenient installation. Clamp band with pronounced beads on the edge for a firm hold and simple pipe adjustment. Combi-TX slotted thread for more flexibility during installation. Further technical properties: · Connection thread: M8 / M10 · Clamp band width: 20mm · Clamp band width x thickness: 20 x 1.8mm · Installation torque: 2Nm · Nominal size: 4 inches · Professional / DIY: Professional · Wrench size: 13mm · Clamping range: 108 - 115mm · Clamping range from - to: 108mm · Clamp band thickness: 1.8mm · Max. recommended static load (central tensile): 1.3kN
