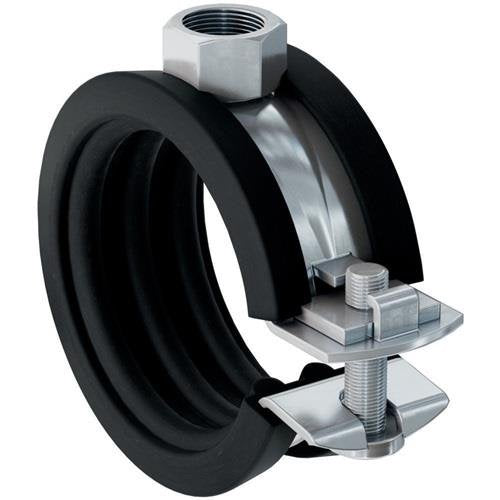

Articulated pipe clamp FGRS LxB45 / 20xH17mm galv. galvanized steel FISCHER

The fischer FGRS articulated pipe clamp is a single-screw pipe clamp made of electro-galvanized steel with material quality DD11. The hinged screw quick-release fastener allows for simple, time-saving, one-handed installation. The engagement of the safety lock guarantees secure adjustment of the pipe without the clamp springing open. This allows pipes with an outer diameter of 12 - 63 mm to be securely fastened indoors with threaded rod or hanger bolt. With a chlorine- and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. Marketing Claim: The one-piece articulated pipe clamp with hinged screw. Advantages: The hinged screw enables simple one-handed installation. The compact design of the pipe clamp allows for easy post-installation insulation. The captive screw ensures problem-free installation. Top Features: Simple one-handed installation. Sound insulation insert. Connection nut with M8 thread. Captive screw. Further technical properties: · Connection thread: M8 · Clamp band width: 20mm · Clamp band width x thickness: 20 x 1.25mm · Installation torque: 2Nm · Professional / DIY: Professional · Sound insulation insert: Material: SBR/EPDM, chlorine-free, silicone-free · Wrench size: 13mm · Clamping range: 8 - 11mm · Clamping range from - to: 8mm · Clamp band thickness: 1.25mm · VDS approval: Yes · Packaging variant: Folding box · Max. recommended static load (central tensile): 0.8kN
