G Geberit
Art. no. 390324141

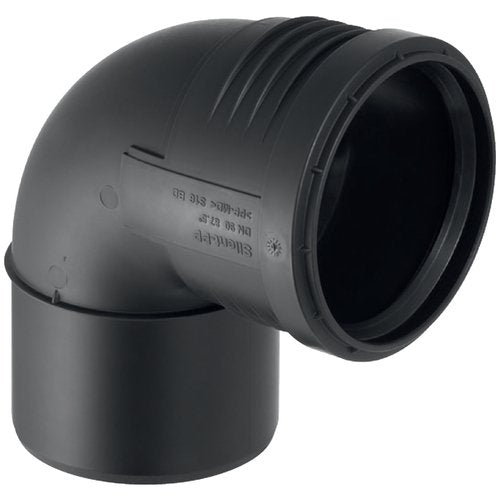

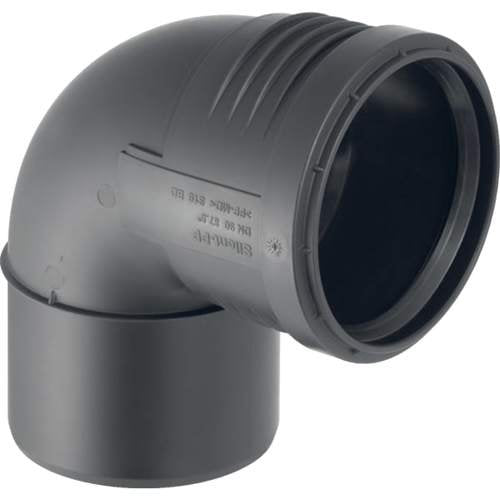

Geberit Silent-PP bend 87.5 degrees, DN70 with socket

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
25,99 €
incl. VAT - Shipping calculated at checkout
In stock 59 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Geberit Silent-PP bend 87.5 degrees, DN70 with socket
Geberit Silent-PP bend 87.5 degrees, DN70 with socket
25,99 €

Geberit Silent-PP Bend
Application purposes
  • For draining wastewater inside buildings
  • For central vacuum cleaner systems in single-family homes, only use 45° bends with dimensions DN 40–50
  • For pressure lines of wastewater lifting units according to EN 12050-2 and EN 12050-3, only use dimensions DN 32–50
Characteristics
  • Sound-optimized
Technical data
  • Installation temperature (°C) - min. to max.: -10 – +40 °C
  • Material: PP-MD
  • Thermal expansion (mm/(m·K)): 0.08 mm/(m·K)
  • Shape: Bend

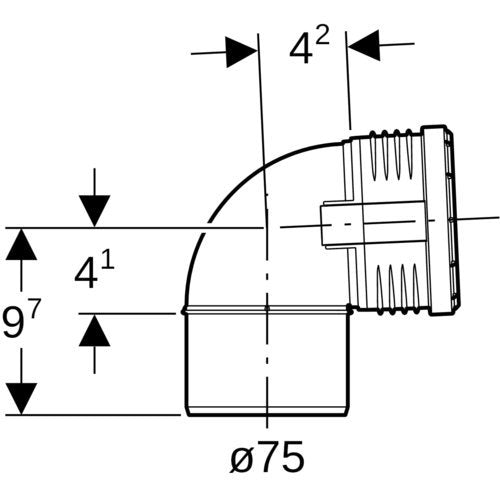

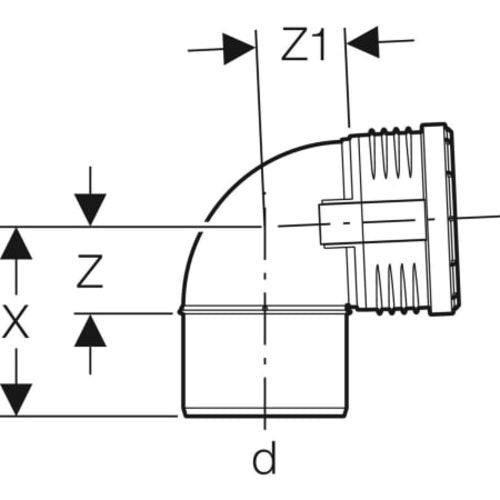

  • DN / Nominal diameter: 70
  • d, ø / Outside diameter (mm): 75 mm
  • arc / Angle (°): 87.5 °
  • X / Leg length / L-dimension (cm): 9.7 cm
  • Z / Z-dimension (cm): 4.1 cm
  • Z1 / Z-dimension (cm): 4.2 cm
