Art. no.
307670141

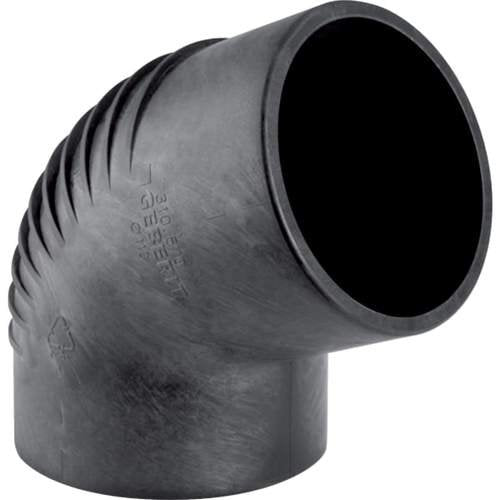

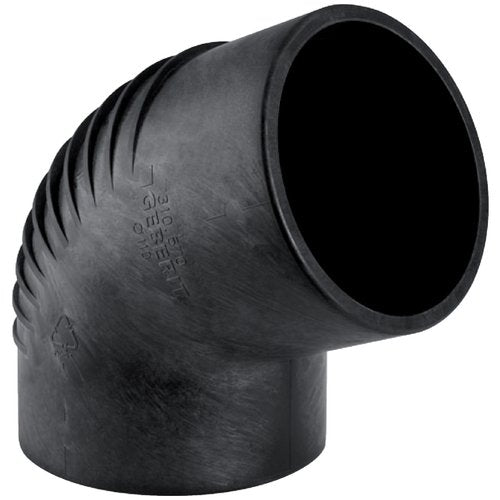

Geberit Silent-db20 Bend 67 Degrees DN70
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
In stock
77 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

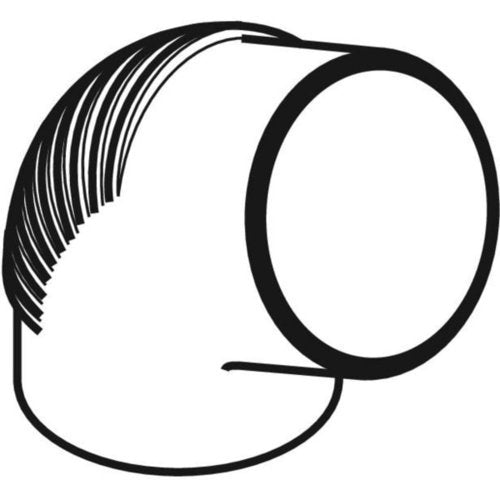

Geberit Silent-db20 Bend
Fields of application
Fields of application
- For buildings with increased sound insulation requirements
- For building drainage
- Can be cut to length
- Long spigot
- Highly sound-insulating
- Storage temperature (°C) - min. to max.: max. 40 °C
- Material: PE-S2
- Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)
- Shape: Bend
- Thermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)

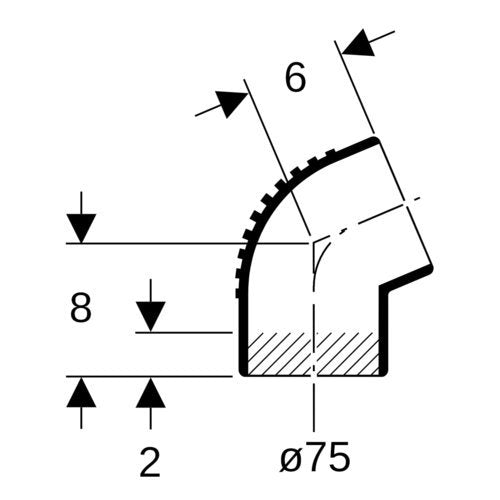

- DN / Nominal diameter: 70
- d, ø / Outside diameter (mm): 75 mm
- arc / Angle (°): 67 °

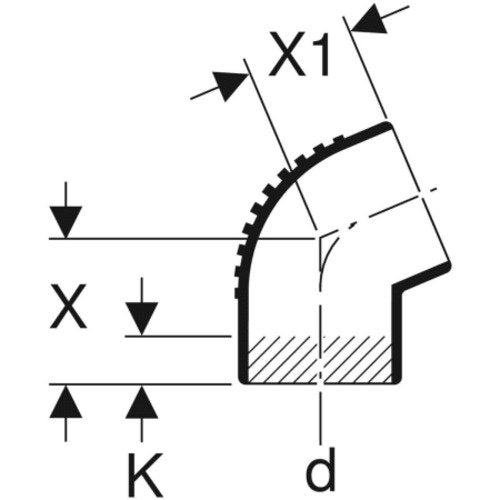

- X / Leg length / L-dimension (cm): 8 cm
- X1 / Leg length / L-dimension (cm): 6 cm
- K / Shortening (cm) - max.: 2 cm
