G Geberit
Art. no. 307450141

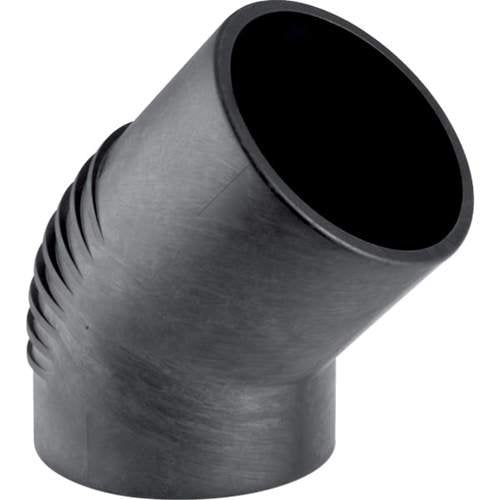

Geberit Silent-db20 Bend 45 Degrees DN70

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
30,99 €
incl. VAT - Shipping calculated at checkout
In stock 222 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Geberit Silent-db20 Bend 45 Degrees DN70
Geberit Silent-db20 Bend 45 Degrees DN70
30,99 €

Geberit Silent-db20 Bend
Applications
  • For buildings with increased sound insulation requirements
  • For building drainage
Characteristics
  • Can be shortened
  • Long leg
  • Highly sound-insulating
Technical properties
  • Storage temperature (°C) - min. to max.: max. 40 °C
  • Material: PE-S2
  • Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)
  • Shape: Bend
  • Thermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)
  • DN / Nominal diameter: 70

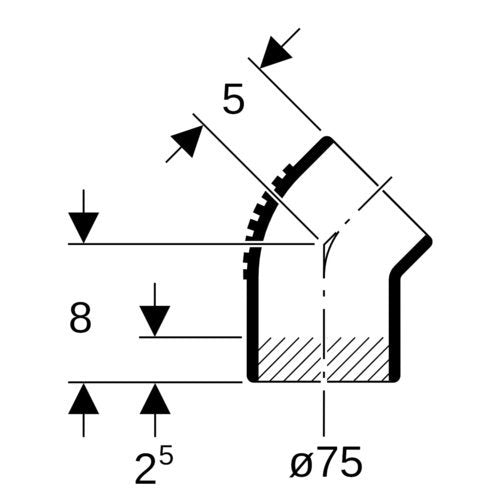

  • d, ø / Outside diameter (mm): 75 mm
  • arc / Angle (°): 45 °

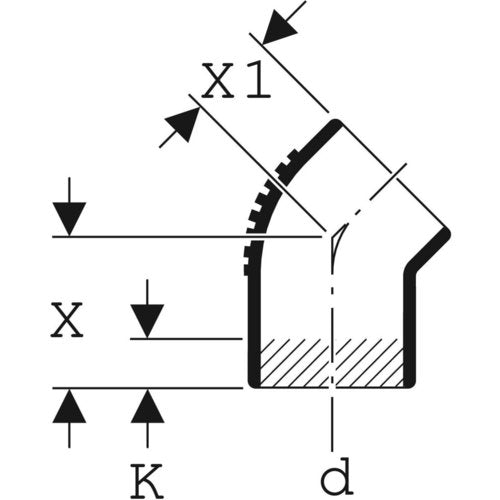

  • X / Leg length / L-dimension (cm): 8 cm
  • X1 / Leg length / L-dimension (cm): 5 cm
  • K / Shortening (cm) - max.: 2.5 cm
