Art. no.
310300141

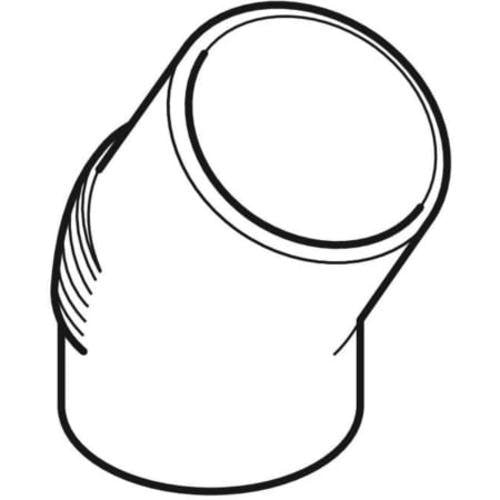

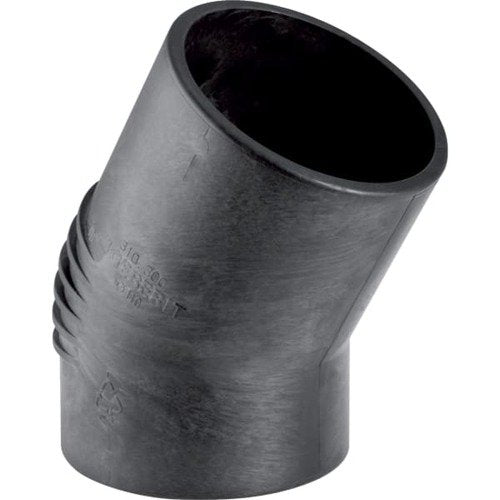

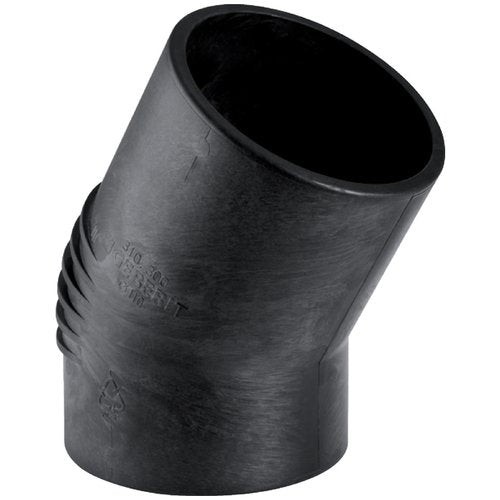

Geberit Silent-db20 Bend 30 Degrees DN100
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
In stock
70 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Geberit Silent-db20 Bend
Application purposes
Application purposes
- For buildings with increased sound insulation requirements
- For building drainage
- Can be shortened
- Long leg
- Highly sound-insulating
- Storage temperature (°C) - min. to max.: max. 40 °C
- Material: PE-S2
- Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)
- Shape: Bend
- Thermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)
- DN / Nominal diameter: 100
- d, ø / Outside diameter (mm): 110 mm
- arc / Angle (°): 30 °

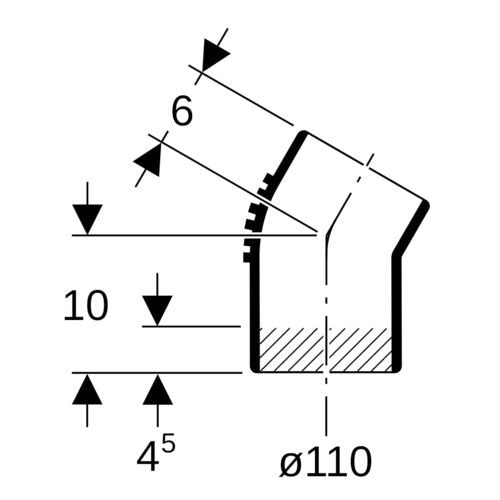

- X / Leg length / L-dimension (cm): 10 cm
- X1 / Leg length / L-dimension (cm): 6 cm
- K / Shortening (cm) - max.: 4.5 cm
