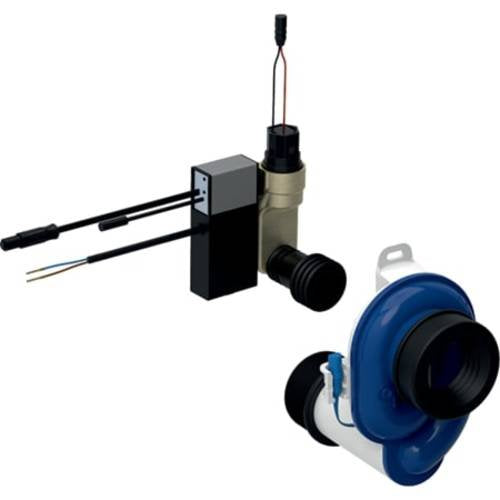

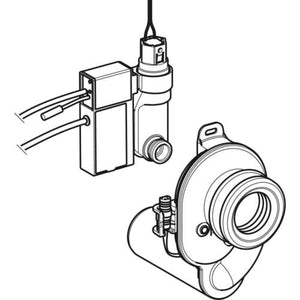

Geberit Concealed Mains-Powered Electronic Flush Control for Urinals
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
569,38 €
Unavailable
Only a few left
8 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Geberit Concealed Mains-Powered Electronic Flush Control for Urinals
569,38 €
Geberit urinal control with electronic flush actuation, mains operation, surface-mounted, concealed
Features
Features
- Compatible with Geberit Control App
- Device settings and operation with mobile device via integrated Bluetooth interface
- Water-saving hybrid mode adjustable
- Brightness sensor for deactivating the control when the urinal is removed
- Protection class: IPX4
- Nominal voltage (V AC): 110–240 V AC
- Operating voltage (V DC): 6.6 V DC
- Mains frequency (Hz): 50–60 Hz
- Flow pressure (kPa) - min. to max.: 100–800 kPa
- Test pressure water (kPa) - max.: 1600 kPa
- Water temperature (°C) - max.: 30 °C
- Flow rate at 100 kPa with flow limiter (l/s): 0.18 l/s
- Minimum flow pressure for calculated flow rate (kPa): 100 kPa
- Calculated flow rate (l/s): 0.23 l/s
- Interval flush setting range (h): 1–168 h
- Interval flush factory setting (h): 24 h
- Interval flush time setting range (s): 3–180 s
- Interval flush time factory setting (s): 5 s
- Dwell time setting range (s) - min. to max.: 3–15 s
- Dwell time factory setting (s): 7 s
- Flush time setting range (s): 1–15 s
- Flush time factory setting (s): 7 s
- Material: Brass / Plastic
- Power consumption (W): max. 0.5 W
- Control electronics
- Urinal odor trap with sensor
- Water section with solenoid valve
