G Geberit
Art. no. 115863SN6

GE WC control with electric flush, mains, BT 1-flush volume. Sigma10, for concealed cistern, manual

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
645,13 €
incl. VAT - Shipping calculated at checkout
Only a few left 6 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
GE WC control with electric flush, mains, BT 1-flush volume. Sigma10, for concealed cistern, manual
GE WC control with electric flush, mains, BT 1-flush volume. Sigma10, for concealed cistern, manual
645,13 €

Geberit WC control with electronic flush actuation, mains operation, for Sigma concealed cistern 12 cm, single flush, with Sigma10 flush plate, round, for hinged support rail, manual
Applications
  • For manual remote actuation of Sigma concealed cisterns 12 cm via hinged support rails with potential-free push-button with closing function
Characteristics
  • Interval flushing preset
  • Compatible with Geberit Connect
  • Can be networked wired with Geberit Gateway via GEBUS converter
  • Can be networked wirelessly with Geberit Gateway via Bluetooth
  • Compatible with Geberit Control App
Multiple colours / finishes
  • Plate and button: brushed, easy-to-clean coated
  • Design ring: polished
Technical data
  • Protection class: IP45
  • Rated voltage (V AC): 85–240 V AC
  • Operating voltage (V DC): 12 V DC
  • Mains frequency (Hz): 50–60 Hz
  • Power consumption standby (W): 0.15 W
  • Interval flushing setting range (h): 1–168 h
  • Interval flushing factory setting (h): 24 h
  • Interval flushing time setting range (s): 1–200 s
  • Interval flushing time factory setting (s): 5 s
  • Button shape: round
  • Stainless steel

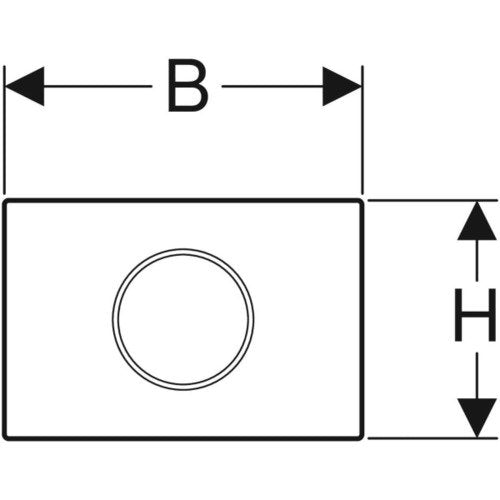

  • W / Width (cm): 24.6 cm
  • H / Height (cm): 16.4 cm
  • D / Depth (cm): 1.5 cm
  • Power consumption (W): max. 4 W

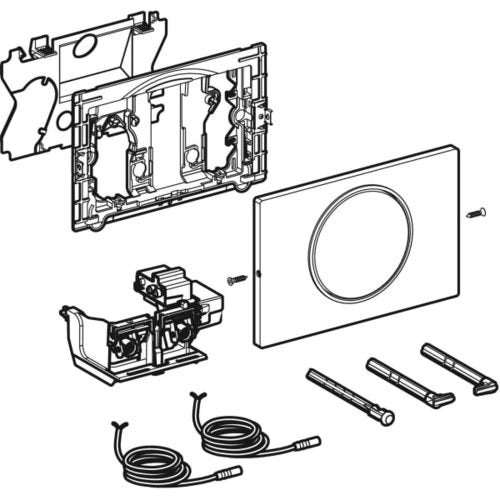

Scope of delivery

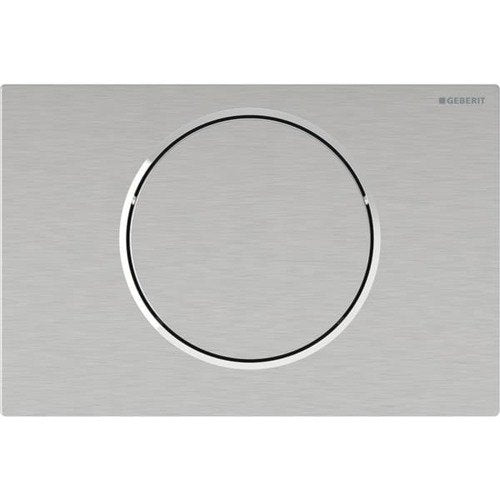

  • Sigma10 flush plate
  • Mounting frame
  • Protective plate
  • Push rod
  • Bearing block with servo motor and lifting device, pre-assembled
  • Electrical control unit
  • 2 pre-fabricated cables, length 1.2 m
  • Mounting material
To be ordered additionally
  • Geberit Set Power & Connect Box, with intermediate base with terminal block
  • Geberit Power & Connect Box
  • Geberit power supply unit for Power & Connect Box
