G Geberit
Art. no. 315144141

GE Silent-db20 Branch 45 Degree DN150/150

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
90,32 €
incl. VAT - Shipping calculated at checkout
Only a few left 3 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
GE Silent-db20 Branch 45 Degree DN150/150
GE Silent-db20 Branch 45 Degree DN150/150
90,32 €

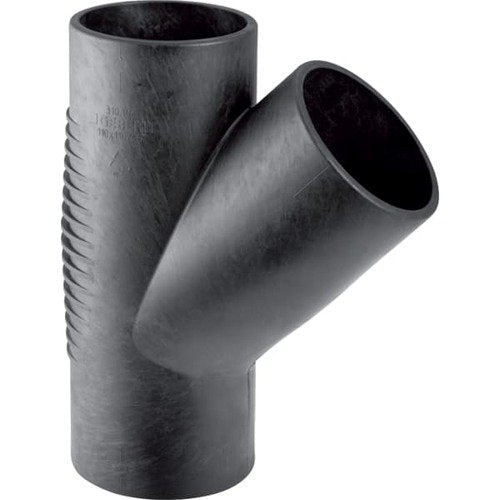

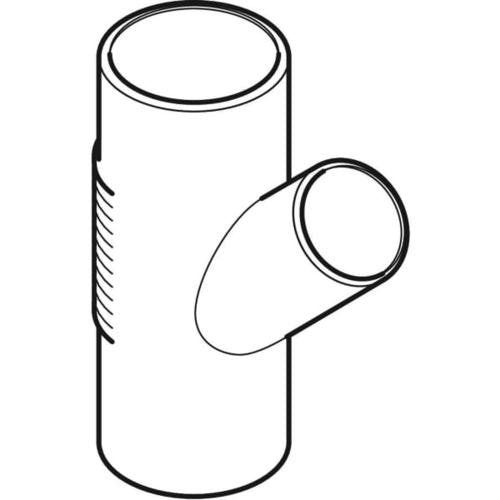

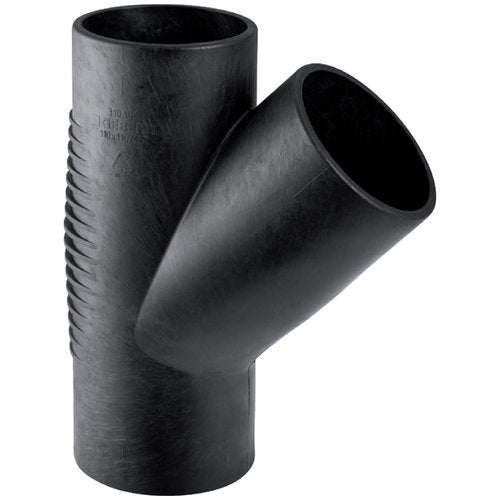

Geberit Silent-db20 Branch 45°
Application purposes
  • For buildings with increased sound insulation requirements
  • For building drainage
Technical properties
  • Storage temperature (°C) - min. to max.: max. 40 °C
  • Material: PE-S2
  • Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)
  • Shape: Branch
  • Thermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)

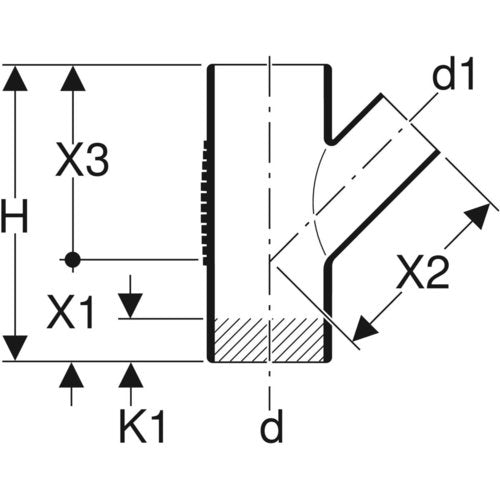

  • DN / Nominal diameter: 150
  • d, ø / Outer diameter (mm): 160 mm
  • d1, ø / Outer diameter (mm): 160 mm
  • arc / Angle (°): 45 °
  • H / Height (cm): 41.5 cm
  • X1 / Leg length / L-dimension (cm): 14 cm
  • X2 / Leg length / L-dimension (cm): 27.5 cm
  • X3 / Leg length / L-dimension (cm): 27.5 cm
  • K1 / Shortening (cm) - max.: 7 cm
