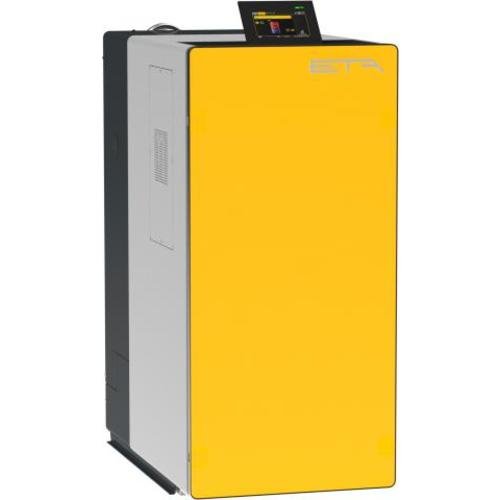

ETA eSH 20 Log Boiler

ETA eSH 20 wood gasification boiler combustion control, lambda probe for
automatic adjustment of primary
and secondary air, speed-controlled
induced draft fan with EC motor,
large filling door with smoldering gas extraction,
automatic ignition via
glow plug igniter, integrated
return flow boosting with mixer and
high-efficiency pump and optional
integratable electrostatic
particle separator with automatic
cleaning, turbulators in the
heat exchanger with shaking device
for cleaning, ash removal completely
from the front. Integrated sensor for
measuring the generated heat quantity
(not calibrated), connection flange
left for pellet burner eTWIN.

Microprocessor control:
Operation with 7-inch touchscreen with
intuitive user interface,
2 mixer heating circuits with weekly program
(for 2nd mixer circuit sensor 19026-01
required), expansion with
room sensors possible.
Storage tank charging or fresh water module,
circulation pump, buffer management,
solar system (sensor set 19027-01 required),
),
input for external heat request,
potential-free output (changeover switch) for
fault message, LAN interface for
Internet connection.
Remote control of the system and e-mail
notification via free
internet platform www.meinETA.at

3 buffer sensors, 1 outdoor,
1 domestic hot water tank and 1 flow
sensor included,
boiler pre-wired ready for connection.

Technical data:
Nominal output (W20): 20.0kW
Boiler temperature adjustable: 70-85 C
Boiler efficiency: Partial/Nominal 94.2%
Filling chamber volume: 100 lt 1/2m-logs
Boiler dimensions: WxDxH 586x1100x1250mm
Total weight: 460kg
Flue gas connection diameter: 130mm
Minimum connection height chimney: 1200mm
Electrical power consumption: 58W
Power connection: 1x230 V / 50 Hz / 13A
