electronic WC fitting, HD-M, 230V, concealed-installation SCHELL Puris E # 012150699 chrome-plated

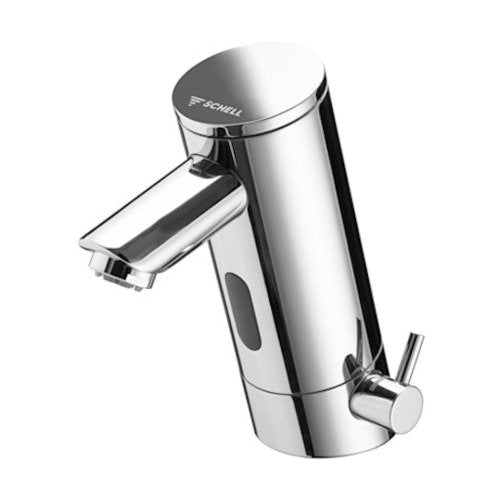

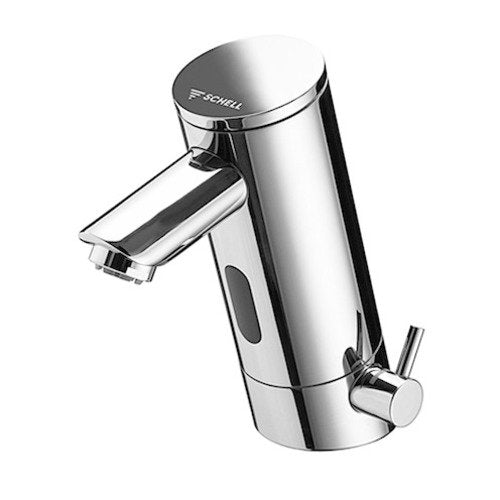

Electronic basin faucet PURIS E

HD-M - high-pressure mixed water

Infrared sensor-controlled. Mains operation (concealed power supply unit). Suitable for networking with SCHELL Water Management System SWS. Configurable via SCHELL Single Control SSC.

Scope of delivery

• Infrared sensor single-hole faucet
• Temperature regulator
• Infrared sensor electronics, programmable
• Solenoid valve 6 V with pre-filter
• Aerator
• Concealed power supply unit 9 VDC, 100 - 240 VAC, 50 - 60 Hz
• 2 flexible connection hoses Clean-Fix S G 3/8 IT x 380 mm, with integrated backflow preventer (RV, EN 1717: EB) and pre-filter
• Fastening material for basin mounting

Technical data

• Settings via SWS/SSC
• Sensor range (short / medium / long)
• Programming via close-range reflection (off / on)
• Max. running time (1 - 360 s)
• Follow-up time (0.6 - 60 s)
• Stagnation flush (off / 5 - 600 s, every 1 - 240 h after last flush / every 1 - 240 h)
• Continuous flush for thermal disinfection, with scald protection (off / 15 - 600 s)
• Continuous flow (off / 15 - 600 s)
• Energy-saving mode (off / 1 - 254 h after last use)
• Cleaning stop (off / 60 - 360 s)
• Settings via close-range reflection
• Sensor range (short / medium / long)
• Stagnation flush (off / 30 s, every 24 h after last flush / every 24 h)
• Continuous flush for thermal disinfection, with scald protection (off / 300 s / 120 s)
• Cleaning stop (off / 60 s)
• Flow rate: max. 5 l/min pressure-independent
• Flow pressure: 1.0 - 5.0 bar
• Max. static pressure: 8 bar
• Max. operating temperature: 70 °C (80 °C for thermal disinfection)
• Material: Housing brass compliant with TrinkwV
• Surface: chrome
• Connection: G 3/8 IT
• Certificates: P-IX 9523-I, ACS, Belgaqua, SVGW, WELL public
• Noise class: I
