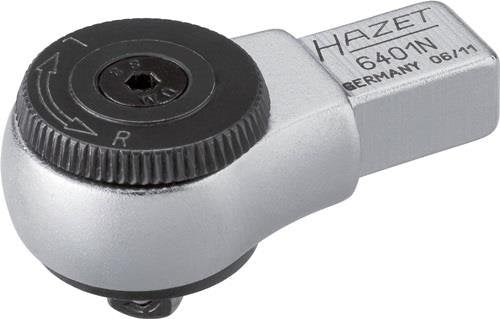

Insert Reversible Ratchet 6401N Drive 1/4inch Insert 4-square 9x12mm Fine-tooth

Fine-toothing · 72 teeth · Operating angle 5° Drop forged Surface: chrome-plated DIN 3120 · ISO 1174-1 Made in Germany Drive: 9 x 12 mm insert square Output: 1/4 inch (6.3 mm) solid square Dimensions / Length: 46 mm Net weight (kg): 0.07 kg Number of teeth: 72 (operating angle 5°) Adjustment tool dimension l2: 17.5 mm Head thickness a: 11 mm Head thickness (a1): 16.5 mm Head width b: 25 mm Further technical characteristics: · Surface: chrome-plated · Material: Chrome-vanadium · Output square: 6.3mm · Output square (inch): 1/4 inch · Drive: 9 x 12 mm insert square · Number of teeth: 72 teeth · Max tightening torque Nm: 40Nm · Batteries/rechargeable batteries required for operation: false · Operating angle: 5° · Head thickness (a1): 16.5mm · Head thickness a: 11mm · Net weight (kg): 0.07kg · Standard: DIN 3120, ISO 1174-1 · Adjustment tool dimension l2: 17.5mm · Use: 5280-3CT, 5290-3CT, 6280-1CT, 6282-1CT, 6280-1CTCAL, 6282-1CTCAL, 6290-1CT, 6291-2CT, 6290-1CTCAL, 6291-2CTCAL, 6281-2CT, 6281-2CTCAL, 6391-10, 6391-12, 6391-12V, 6391-25, 6391-35, 6391-25V, 6391-35V, 6391-50, 6391-85, 6391-50V, 6391-85V, 7280-2STAC, 7281-2STAC, 7290-2STAC, 7291-2STAC, 7280-2STACCAL, 7281-2STACCAL, 7290-2STACCAL, 7291-2STACCAL, 7280-5STAC, 7281-5STAC, 7290-5STAC, 7291-5STAC, 6396
