Drop-in Anchor EA II M10 x 25mm Drop-in FISCHER

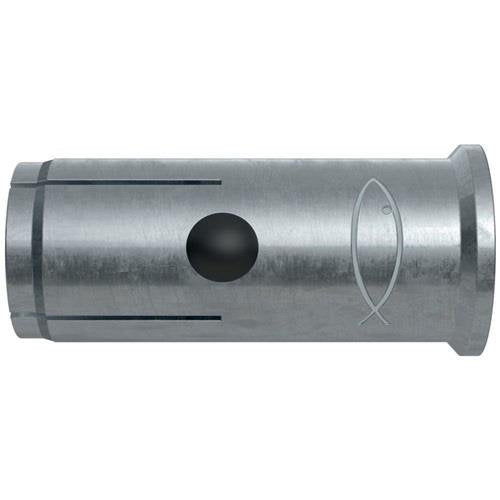

The fischer drop-in anchor EA II is an internal threaded anchor made of electro-galvanised steel and stainless steel. The fischer drop-in anchor is ideal for anchoring sprinkler systems, cable trays and consoles indoors and outdoors. The European Technical Assessment for uncracked concrete, the approval for multiple fixings of non-load-bearing systems and the fire rating according to fire resistance class R 120 offer an added plus in safety. The drop-in anchor is set flush with the surface of the anchoring base using a hammer. The embossed rim prevents it from slipping deeper. With the setting tool EAW H Plus or the machine setting tool EA II S-SDS, the sleeve is expanded by driving in the internal pin and braces itself against the drill hole wall. Marketing Claim: The internal threaded anchor with a rim for easy hammer-set installation. Advantages: The embossed rim prevents the anchor sleeve from slipping deeper and ensures problem-free hammer-set installation. The metric internal thread allows the use of commercially available screws or threaded rods for ideal adaptation to the application. The EMS machine setting tool enables effortless installation, especially for series installations. The embossing applied during expansion with the setting tool EHS Plus simplifies checking the anchorage and offers a high level of application safety. Fixation point at hef 25 mm against unintentional falling out of the anchor before expansion. Ideal for use with high load requirements. Top Features: Easy hammer-set installation: no slipping deeper during installation thanks to the pronounced rim of the anchor sleeve. Use of commercially available metric screws and threaded rods reduces complexity. Effortless series installation with machine setting tool EA II S-SDS. Visual inspection by embossing. ETA approval for concrete and multiple fixings. Further technical properties: · min. drill hole depth t: 27mm · Thread size (mm): 10mm · Min. drill hole depth for pre-positioned installation: 27mm · Min. screw-in depth: 10mm · Professional / DIY: Professional · Test marks / approvals: ETA - European Technical Assessment, VdS Recognition, FM (Factory Mutual), Fire protection classification · VDS approval: Yes · Packaging variant: Folding box · Pre-positioned installation: Yes Easy hammer-set installation: no slipping deeper during installation thanks to the pronounced rim of the anchor sleeve. ETA approval for uncracked concrete. Effortless series installation with machine setting tool EA II S-SDS. Visual inspection by embossing. Use of commercially available metric screws and threaded rods reduces complexity.
