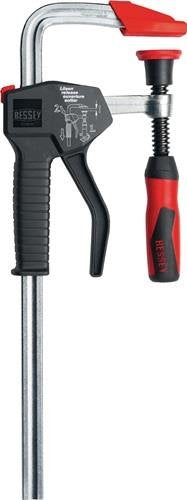

One-Hand Clamp EHZ Clamping Width 600mm Outreach 100mm BESSEY

with one-handed operation: Fix in one go with the clamping lever and without repositioning; tighten and release as usual via the multi-component handle · rail, fixed jaw and pressure plate made of profile steel, tempered and electro-galvanized · sliding jaw made of tempered steel, drop-forged, tempered and electro-galvanized · housing and one-hand quick-release lever made of glass-fibre reinforced polyamide · spindle with trapezoidal thread · blued · movable pressure plate, electro-galvanized · riveted without burrs · removable protective caps for gentle clamping · super elastic · clamping force 5000 N · The entire clamping range of the sliding rail is available for one-handed operation or fixing. This means that even soft or elastic materials, such as bent sheet metal, can be held effortlessly without having to readjust the handle. Further technical features: · Rail cross-section: 19.5 x 9.5mm · Clamping force: 5000N
