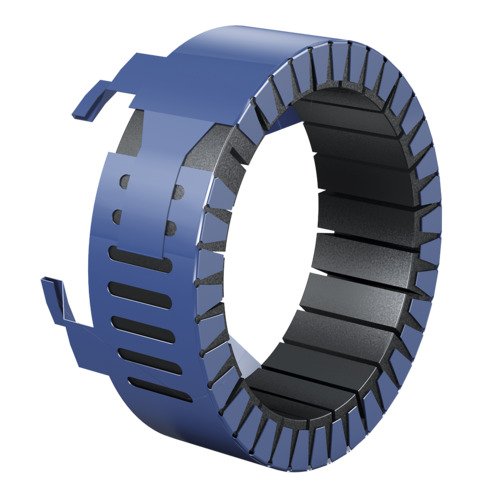

Doyma Curaflam KONFIX Pro DN50 with BS plate and tensioning strap

Curaflam KonfixPro (foldable) including fire protection plate and tension band For the ceiling sealing of SML wastewater pipes with transition to plastic connection pipes according to DIBt 02/2012 test specification "Metal pipes with connection of plastic pipes" approved by: Deutsches Institut für Bautechnik (DIBt) according to approval Z-19.17-2074 For sealing dimension DN 50 for disposal systems - from SML pipe (cast iron riser) up to DN 150 with branch/transition to DN 50 (use of sound insulation foil made of PE up to 5 mm thick possible) - Installation of the Curaflam KonfixPro on commercially available Konfix connectors on the SML branch for connected plastic disposal pipes - Approved plastic wastewater pipes: Geberit db20, Geberit Silent PP, Wavin AS, Wavin Sitech, Rehau Raupiano plus, Polokal NG, Polokal 3S, Ostendorf Skolan DB, Friatec Friaphon, Friatec dBlue, Valsir Triplus, COES Blue Power as well as wastewater pipes of all common standards for installation: - behind a single layer of plasterboard (GKB) at least 9.5 mm thick Ceiling thickness >/= 150 mm (further details can be found in the approval)
