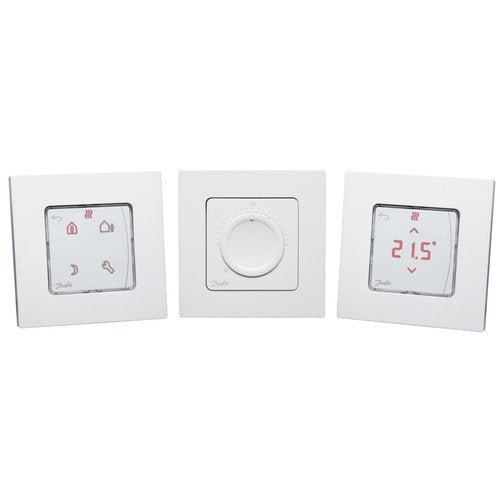

Danfoss Icon(TM) Programmable In-Wall Thermostat

Danfoss Icon(tm) in programmable version,
Flush-mounted
Usable and optimizable for water-based underfloor heating and radiators.
Suitable for standard flush-mounted boxes with a C-C distance of 60 mm,
fits into the switch ranges of manufacturers Busch-Jaeger, Berker, Jung, GIRA, Merten, Legrand, Peha and Hager.
Further information see www.heating.danfoss.de
Usable in the 230V version as a stand-alone controller or together with the Danfoss FH-WC main controller (article number 088H0016)
The thermostat features a glass-like control panel with a backlit LED display.
In normal operation, the display is off.
The thermostat can silently control up to five thermal actuators (Danfoss TWA, Thermot) via a 230V Triac output.
Precise control via adaptable PWM (Pulse Width Modulation)
Seven predefined schedules, temporary temperature change via the three mode buttons or 24-hour program.
Automatic summer/winter time changeover
Adaptive self-learning function for heating and setback times
The cooling function and the absence function can be activated via two 230V inputs.
The heating/cooling function and the absence function cannot be connected via the FH-WC.
Smooth, easy-to-clean surface, very high UV resistance
Anti-blocking function of the valve spindle,
Temperature range 5-35 C,
Frost protection function,
Actual temperature display,
Limitable,
IP21,
Connection possibility for a floor sensor (article number 088U1110).
Power supply: 220-240V, 50/60 Hz
AC
Contact load / output: Max.
Continuous load: 50mA or 10W.
Max. switching capacity (inrush current): 3A
