Art. no.
088H3216

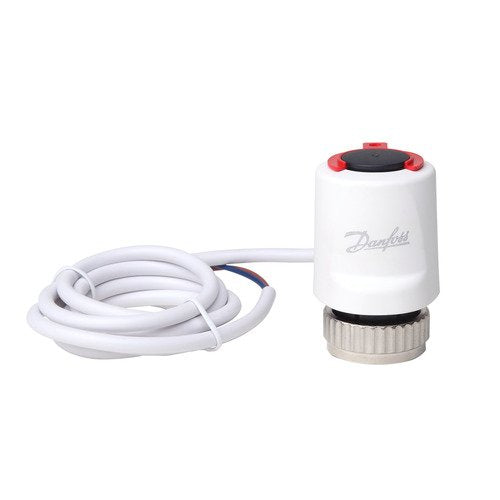

Danfoss Thermal Actuator 24V AC/DC, M30x1.5, NC
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
10,83 €
Unavailable
In stock
1030 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Danfoss Thermal Actuator 24V AC/DC, M30x1.5, NC
10,83 €
Danfoss Thermal Actuator Thermot, suitable
for valves with M30 x 1.5 mm connection
in conjunction with room thermostats (e.g. Danfoss RET, FHW series, TP series or radio-controlled CF control, Link system)
With visible position indicator (indicates whether valve is open or closed).
On/Off and PWM control.
Technical data
Supply voltage: 24 V AC/DC
Max. starting current: 350 mA
Frequency: 50-60 Hz
Average power consumption: 2 W
Full valve stem movement: approx. 3 min
Ambient temperature: 0-60 C
Protection class: IP 41
Cable length: 1200 mm
Stroke (minimum after 5 years): 2.4 mm
Actuating force (Thermot-NC): 100 N
Thermot closed dimension: 11.8 +/- 0.3 mm
Test mark: CE
Make: Danfoss
Type: Thermot
Order no.: 088H3216
for valves with M30 x 1.5 mm connection
in conjunction with room thermostats (e.g. Danfoss RET, FHW series, TP series or radio-controlled CF control, Link system)
With visible position indicator (indicates whether valve is open or closed).
On/Off and PWM control.
Technical data
Supply voltage: 24 V AC/DC
Max. starting current: 350 mA
Frequency: 50-60 Hz
Average power consumption: 2 W
Full valve stem movement: approx. 3 min
Ambient temperature: 0-60 C
Protection class: IP 41
Cable length: 1200 mm
Stroke (minimum after 5 years): 2.4 mm
Actuating force (Thermot-NC): 100 N
Thermot closed dimension: 11.8 +/- 0.3 mm
Test mark: CE
Make: Danfoss
Type: Thermot
Order no.: 088H3216
