Art. no.
517111
Dallmer DallDrain Individ. Plan Floor Drain DN40, 100x100mm
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
263,33 €
Unavailable
Only a few left
6 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Dallmer DallDrain Individ. Plan Floor Drain DN40, 100x100mm
263,33 €
DallDrain Individual Plan Floor Drain

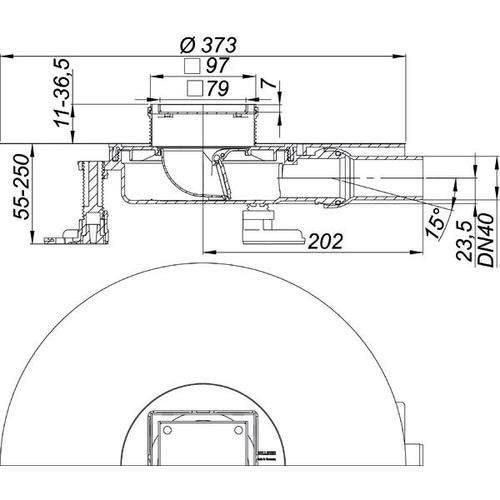

Floor drain including DallDrain Individual attachment with stainless steel frame for tiling with individual floor coverings. Drain connector DN 40 lateral, with ball joint, adjustable from 0 – 15 degrees.
Features:
– Tile insert and frame made of stainless steel
– Integrated screed anchoring
– Flexible, clickable sealing collar for secure connection to composite and sheet waterproofing in accordance with DIN 18534
– Completely removable, two-part odor and cleaning trap, water seal height 22 mm (deviating from DIN EN 1253)
– Construction protection cover
– Three sound-decoupled mounting feet for fixing and height adjustment 55 – 250 mm
– Attachment extension can be shortened for floor coverings 10 – 36 mm (incl. adhesive)
– Screed reinforcement element to protect the drain connector
MATERIAL
Drain body polypropylene, high impact resistant; drain connector polyethylene, weldable; tile insert stainless steel 1.4301; attachment extension ABS, frame stainless steel 1.4301
Floor drain including DallDrain Individual attachment with stainless steel frame for tiling with individual floor coverings. Drain connector DN 40 lateral, with ball joint, adjustable from 0 – 15 degrees.
Features:
– Tile insert and frame made of stainless steel
– Integrated screed anchoring
– Flexible, clickable sealing collar for secure connection to composite and sheet waterproofing in accordance with DIN 18534
– Completely removable, two-part odor and cleaning trap, water seal height 22 mm (deviating from DIN EN 1253)
– Construction protection cover
– Three sound-decoupled mounting feet for fixing and height adjustment 55 – 250 mm
– Attachment extension can be shortened for floor coverings 10 – 36 mm (incl. adhesive)
– Screed reinforcement element to protect the drain connector
MATERIAL
Drain body polypropylene, high impact resistant; drain connector polyethylene, weldable; tile insert stainless steel 1.4301; attachment extension ABS, frame stainless steel 1.4301
