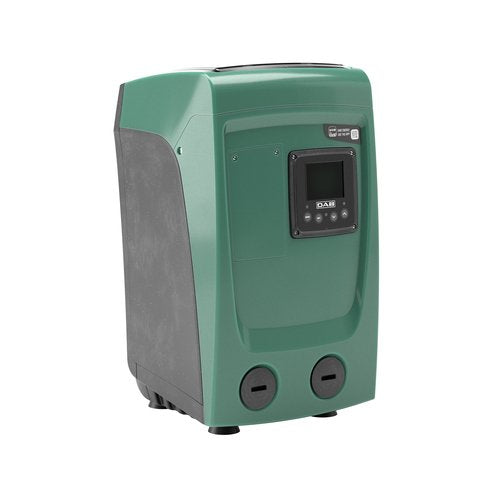

DAB E.sybox Mini3 BIC Electronic Pressure Booster System

ESYBOX MINI 3 Electronic, self-priming multi-impeller system for pressure boosting, rainwater harvesting, groundwater, garden irrigation, and irrigation in residential buildings. The complete system is ready for immediate use and includes, among other things, an expansion tank, a self-priming multi-impeller pump, a frequency converter, and a display. Thanks to its special ABS construction, it operates whisper-quietly at only 45 dB and can therefore be installed in quiet environments. Water-cooled motor. The system can be installed vertically or horizontally. The large, adjustable display allows for easy and precise configuration of operating parameters. Power cord and plug are included. Groups of up to two pumps can be formed. The remote control function is supported by the DConnect service integrated directly into the system. Flow rate up to 4.8 m³/h; head up to 55 m. Liquid quality requirements: clean, free of solid or abrasive impurities, low viscosity, non-aggressive, non-crystallized, and chemically neutral. Liquid temperature range: 0 °C to 35 °C for domestic use, 0 °C to 40 °C for other applications. Maximum suction depth: 8 m. Maximum ambient temperature: 50 °C. Maximum operating pressure: 0.75 MPa. Motor protection class: IPX4. Insulation class: F. Installation: Horizontal or vertical fixed installation.
