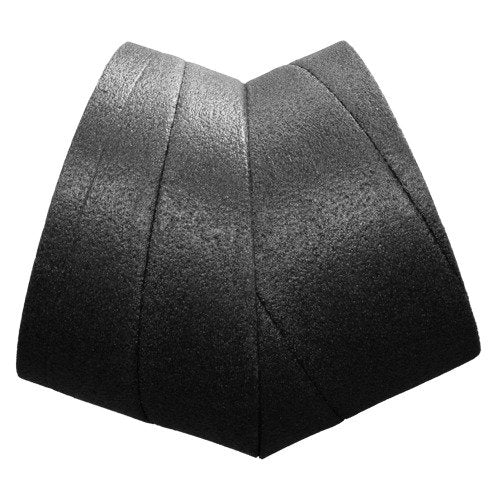

Brink Arc IsoDuplo IDUB 45-180 45 deg, DN180, without socket ends

Insulated 45-degree bend for round-duct
system for installing air ducts between
the ventilation unit and the distribution
boxes for supply and extract air, and the
air ducts between the ventilation unit
and fresh air intake and exhaust air
connection. Quick installation thanks to
coordinated components. High airtightness,
no condensation, sound-absorbing, easy
to maintain and clean. Material density:
30 kg/dm3, antistatic. Thermal
conductivity coefficient 0.040 W/mxK,
temperature range: -40°C to +60°C,
fire rating: B1, designation: IsoDuplo,
nominal diameter: DN 180, moulded part:
45° bend without sleeve, outer diameter:
220 mm, inner diameter: 180 mm. Type:
IDUB 45-180 - Item no.: 414009 -
Supplier: Brink Climate Systems GmbH -
Ridderstraße 20-22 - D-48683 Ahaus -
Tel.: 0 25 61 - 9 84 50 - Fax: 0 25 61 -
98 45 45
